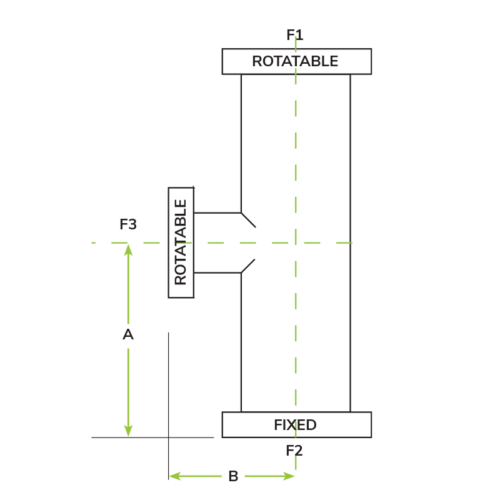

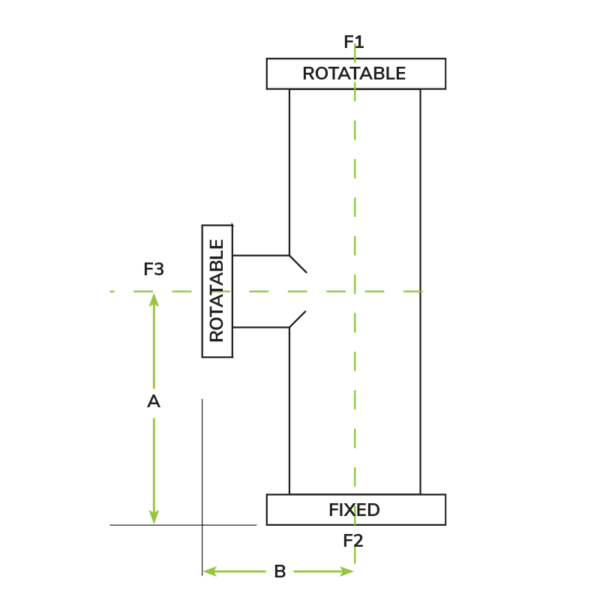

Attributes

A 4.32
B 4.23
Flange 3 O.D. 3.38
Flange 1 & 2 O.D. 5.97
Flange 3 Tube O.D. 2
Flange 1 & 2 Tube O.D. 4
3D CADLogin
DrawingLogin

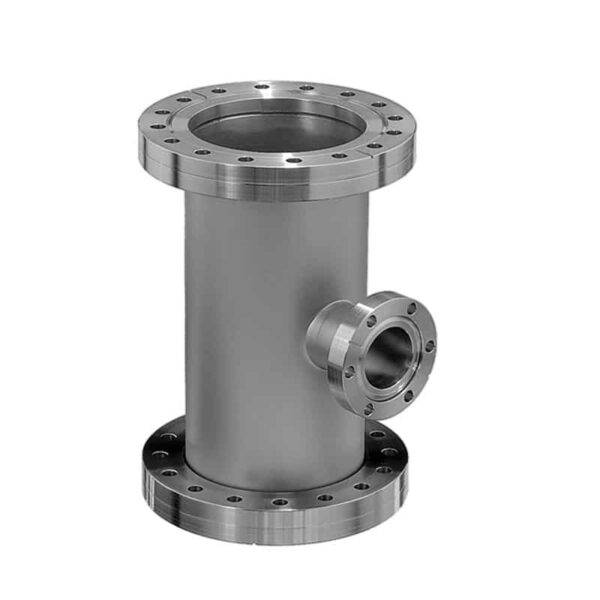

CF600XCF338-400X200-RDT-4.32X4.23

CF600 to CF338 and CF600 Cross

$550.00

Part ID: 5000510


Materials:

  • 304L stainless steel



Product Notes:

  • Pulled ports for optimum vacuum performance
  • Reducing intersection for different CF flange sizes
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium



Options: Contact us for price and availability

  • Custom lengths
  • Tapped flanges
  • Custom flange combinations
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
