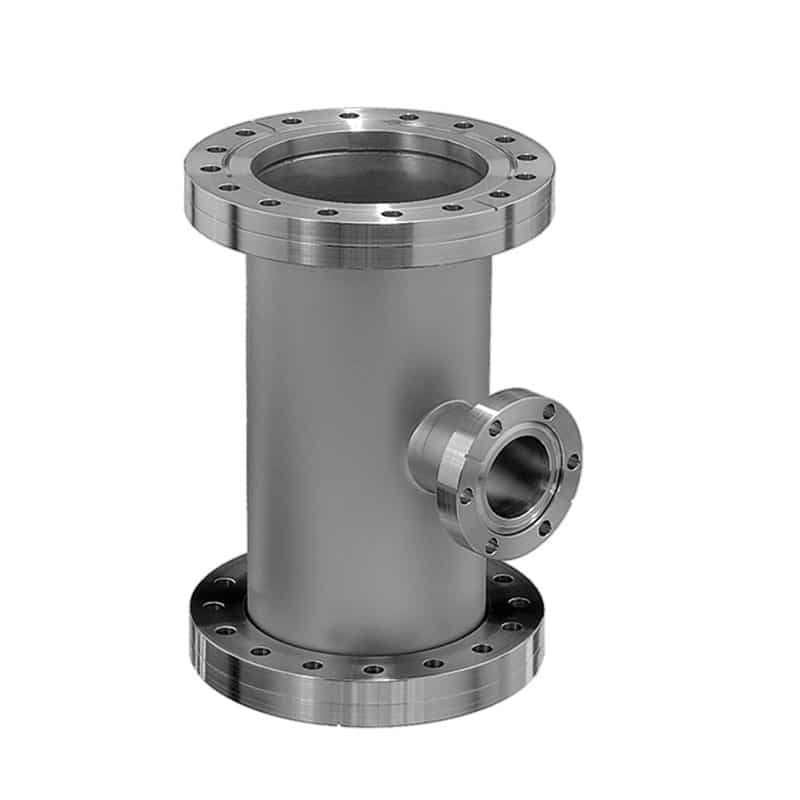

Tee, Reducing
Materials
- 304L stainless steel
Product Notes
- Pulled ports for optimum vacuum performance
- Reducing intersection for different CF flange sizes
- Vacuum rated: UHV (approx. 1×10-13 Torr)
- Temperature range: -200°C up to 450°C
- Leak rating < 1×10-9 std. cc/s helium
Options: Contact us for price and availability
- Custom lengths
- Tapped flanges
- Custom flange combinations
- Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | A | B | Flange 3 O.D. | Flange 1 & 2 O.D. | Flange 3 Tube O.D. | Flange 1 & 2 Tube O.D. | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 5000501 | Reference Number | CF275XCF133-150X075-RDT-2.46X1.87 | A | 2.46 | B | 1.87 | Flange 3 O.D. | 1.33 | Flange 1 & 2 O.D. | 2.72 | Flange 3 Tube O.D. | 0.75 | Flange 1 & 2 Tube O.D. | 1.5 | 3D CAD | Login | Drawing | Login | Unit Price | $165.00 | Contact | |
| Part ID | 5000502 | Reference Number | CF275XCF212-150X100-RDT-2.46X2.30 | A | 2.46 | B | 2.29 | Flange 3 O.D. | 2.12 | Flange 1 & 2 O.D. | 2.72 | Flange 3 Tube O.D. | 1 | Flange 1 & 2 Tube O.D. | 1.5 | 3D CAD | Login | Drawing | Login | Unit Price | $175.00 | Contact | |
| Part ID | 5000503 | Reference Number | CF338XCF133-200X075-RDT-3.22X2.12 | A | 3.22 | B | 2.13 | Flange 3 O.D. | 1.33 | Flange 1 & 2 O.D. | 3.38 | Flange 3 Tube O.D. | 0.75 | Flange 1 & 2 Tube O.D. | 2 | 3D CAD | Login | Drawing | Login | Unit Price | $338.50 | Contact | |
| Part ID | 5000504 | Reference Number | CF338XCF275-200X150-RDT-3.22X2.71 | A | 3.22 | B | 2.71 | Flange 3 O.D. | 2.72 | Flange 1 & 2 O.D. | 3.38 | Flange 3 Tube O.D. | 1.5 | Flange 1 & 2 Tube O.D. | 2 | 3D CAD | Login | Drawing | Login | Unit Price | $360.00 | Contact | |
| Part ID | 5000505 | Reference Number | CF450XCF275-250X150-RDT-3.38X2.96 | A | 3.38 | B | 2.96 | Flange 3 O.D. | 2.72 | Flange 1 & 2 O.D. | 4.47 | Flange 3 Tube O.D. | 1.5 | Flange 1 & 2 Tube O.D. | 2.5 | 3D CAD | Login | Drawing | Login | Unit Price | $375.00 | Contact | |
| Part ID | 5000506 | Reference Number | CF450XCF338-250X200-RDT-3.38X3.48 | A | 3.38 | B | 3.48 | Flange 3 O.D. | 3.38 | Flange 1 & 2 O.D. | 4.47 | Flange 3 Tube O.D. | 2 | Flange 1 & 2 Tube O.D. | 2.5 | 3D CAD | Login | Drawing | Login | Unit Price | $400.00 | Contact | |
| Part ID | 5000507 | Reference Number | CF462XCF338-300X200-RDT-3.63X3.73 | A | 3.63 | B | 3.73 | Flange 3 O.D. | 3.38 | Flange 1 & 2 O.D. | 4.62 | Flange 3 Tube O.D. | 2 | Flange 1 & 2 Tube O.D. | 3 | 3D CAD | Login | Drawing | Login | Unit Price | $470.00 | Contact | |
| Part ID | 5000508 | Reference Number | CF462XCF450-300X250-RDT-3.63X3.63 | A | 3.63 | B | 3.63 | Flange 3 O.D. | 4.47 | Flange 1 & 2 O.D. | 4.62 | Flange 3 Tube O.D. | 2.5 | Flange 1 & 2 Tube O.D. | 3 | 3D CAD | Login | Drawing | Login | Unit Price | $485.00 | Contact | |
| Part ID | 5000509 | Reference Number | CF600XCF275-400X150-RDT-4.32X3.71 | A | 4.32 | B | 3.71 | Flange 3 O.D. | 2.72 | Flange 1 & 2 O.D. | 5.97 | Flange 3 Tube O.D. | 1.5 | Flange 1 & 2 Tube O.D. | 4 | 3D CAD | Login | Drawing | Login | Unit Price | $620.00 | Contact | |
| Part ID | 5000510 | Reference Number | CF600XCF338-400X200-RDT-4.32X4.23 | A | 4.32 | B | 4.23 | Flange 3 O.D. | 3.38 | Flange 1 & 2 O.D. | 5.97 | Flange 3 Tube O.D. | 2 | Flange 1 & 2 Tube O.D. | 4 | 3D CAD | Login | Drawing | Login | Unit Price | $600.00 | Contact | |
| Part ID | 5000511 | Reference Number | CF600XCF450-400X250-RDT-4.32X4.13 | A | 4.32 | B | 4.13 | Flange 3 O.D. | 4.47 | Flange 1 & 2 O.D. | 5.97 | Flange 3 Tube O.D. | 2.5 | Flange 1 & 2 Tube O.D. | 4 | 3D CAD | Login | Drawing | Login | Unit Price | $700.00 | Contact | |
| Part ID | 5000512 | Reference Number | CF600XCF462-400X300-RDT-4.32X4.13 | A | 4.32 | B | 4.13 | Flange 3 O.D. | 4.62 | Flange 1 & 2 O.D. | 5.97 | Flange 3 Tube O.D. | 3 | Flange 1 & 2 Tube O.D. | 4 | 3D CAD | Login | Drawing | Login | Unit Price | $675.00 | Contact | |
| Part ID | 5000513 | Reference Number | CF675XCF600-500X400-RDT-4.82X4.71 | A | 4.71 | B | 4.82 | Flange 3 O.D. | 5.97 | Flange 1 & 2 O.D. | 6.75 | Flange 3 Tube O.D. | 4 | Flange 1 & 2 Tube O.D. | 5 | 3D CAD | Login | Drawing | Login | Unit Price | $905.00 | Contact | |
| Part ID | 5000514 | Reference Number | CF800XCF275-600X150-RDT-5.50X4.71 | A | 5.5 | B | 4.71 | Flange 3 O.D. | 2.72 | Flange 1 & 2 O.D. | 7.97 | Flange 3 Tube O.D. | 1.5 | Flange 1 & 2 Tube O.D. | 6 | 3D CAD | Login | Drawing | Login | Unit Price | $825.00 | Contact | |
| Part ID | 5000515 | Reference Number | CF800XCF338-600X200-RDT-5.50X5.23 | A | 5.5 | B | 5.23 | Flange 3 O.D. | 3.38 | Flange 1 & 2 O.D. | 7.97 | Flange 3 Tube O.D. | 2 | Flange 1 & 2 Tube O.D. | 6 | 3D CAD | Login | Drawing | Login | Unit Price | $865.00 | Contact | |
| Part ID | 5000516 | Reference Number | CF800XCF450-600X250-RDT-5.50X5.13 | A | 5.5 | B | 5.13 | Flange 3 O.D. | 4.47 | Flange 1 & 2 O.D. | 7.97 | Flange 3 Tube O.D. | 2.5 | Flange 1 & 2 Tube O.D. | 6 | 3D CAD | Login | Drawing | Login | Unit Price | $885.00 | Contact | |
| Part ID | 5000517 | Reference Number | CF800XCF600-600X250-RDT-5.50X5.32 | A | 5.5 | B | 5.32 | Flange 3 O.D. | 5.97 | Flange 1 & 2 O.D. | 7.97 | Flange 3 Tube O.D. | 4 | Flange 1 & 2 Tube O.D. | 6 | 3D CAD | Login | Drawing | Login | Unit Price | $950.00 | Contact | |
| Part ID | 5000518 | Reference Number | CF1000XCF800-800X600-RDT-7.50X7.50 | A | 7.5 | B | 7.5 | Flange 3 O.D. | 7.97 | Flange 1 & 2 O.D. | 9.97 | Flange 3 Tube O.D. | 6 | Flange 1 & 2 Tube O.D. | 8 | 3D CAD | Login | Drawing | Login | Unit Price | $1,700.00 | Contact |
