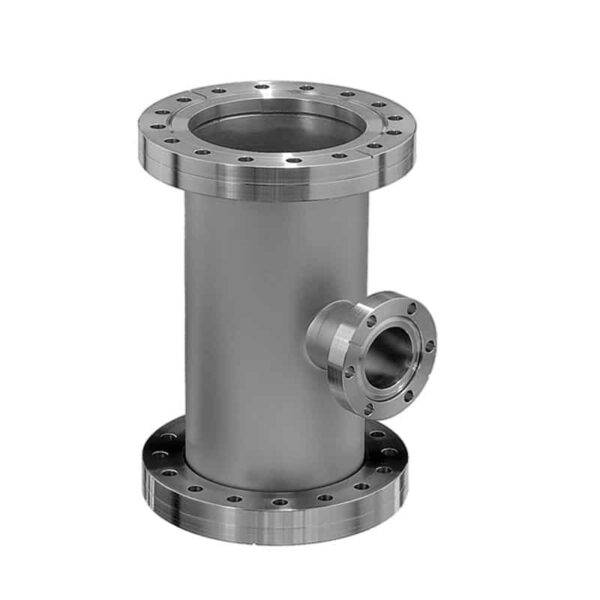

REPRESENTATIVE IMAGE

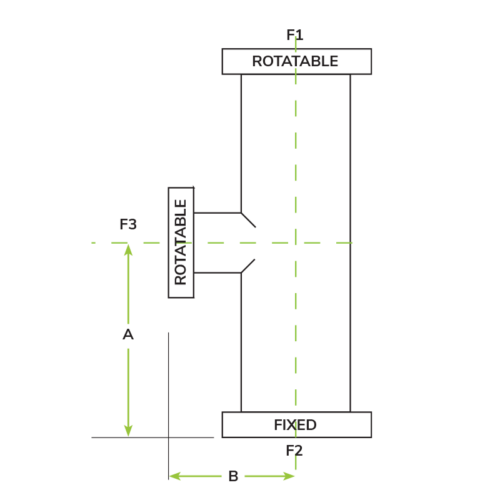

Attributes

A 5.5
B 5.32
Flange 3 O.D. 5.97
Flange 1 & 2 O.D. 7.97
Flange 3 Tube O.D. 4
Flange 1 & 2 Tube O.D. 6
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF800XCF600-600X250-RDT-5.50X5.32

8.00 in. (DN 160) to 6.00 in. (DN 100) ConFlat Flange Reducer Tee

$950.00

Available on backorder

Part ID: 5000517


Features

  • Pulled ports for optimum vacuum performance
  • Reducing intersection for different CF flange sizes

Specifications

  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range from -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium
