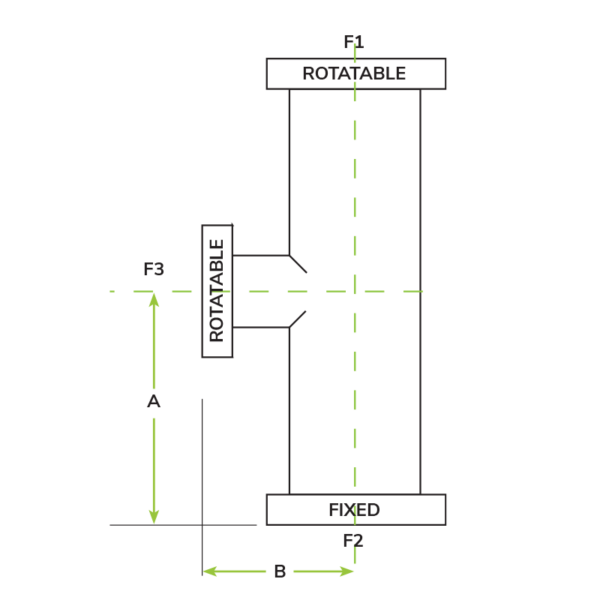

Attributes

A 7.5
B 7.5
Flange 3 O.D. 7.97
Flange 1 & 2 O.D. 9.97
Flange 3 Tube O.D. 6
Flange 1 & 2 Tube O.D. 8
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

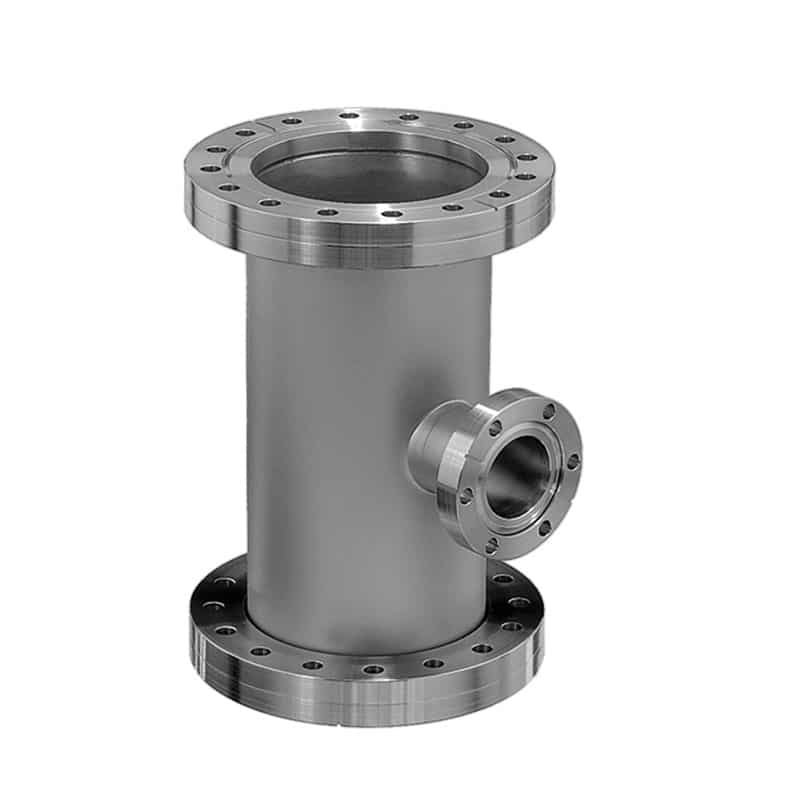

CF1000XCF800-800X600-RDT-7.50X7.50

10.00 in. (DN 200) to 8.00 in. (DN 160) ConFlat Flange Reducer Tee

Part ID: 5000518


















$1,751.00





































			Standard Lead Time:

Contact
















































Available on backorder


















































Tees are manufactured with a flange on each end of a “T” shaped section of tubing. Tees accommodate junctions or alignment considerations for vacuum system design.




Features






  • Pulled ports for optimum vacuum performance
    •

  • Reducing intersection for different CF flange sizes
    •









Specifications






  • Flange Material: 304L Stainless Steel
    •

  • Fitting Material: 304 Stainless Steel
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range from -200°C up to 450°C
    •
