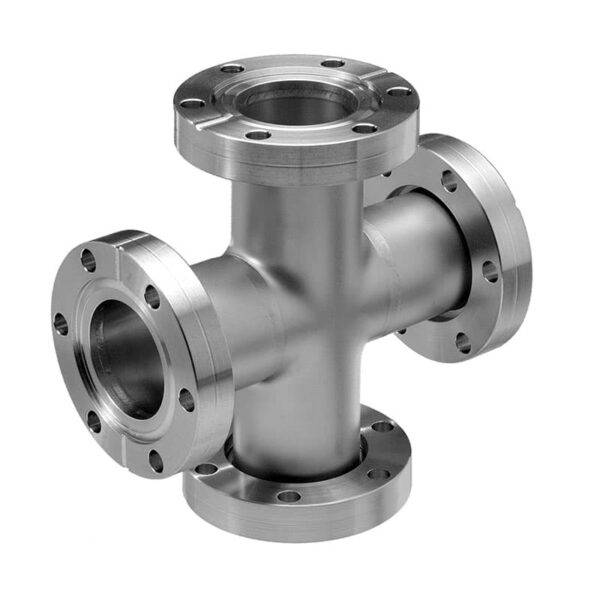

REPRESENTATIVE IMAGE

Attributes

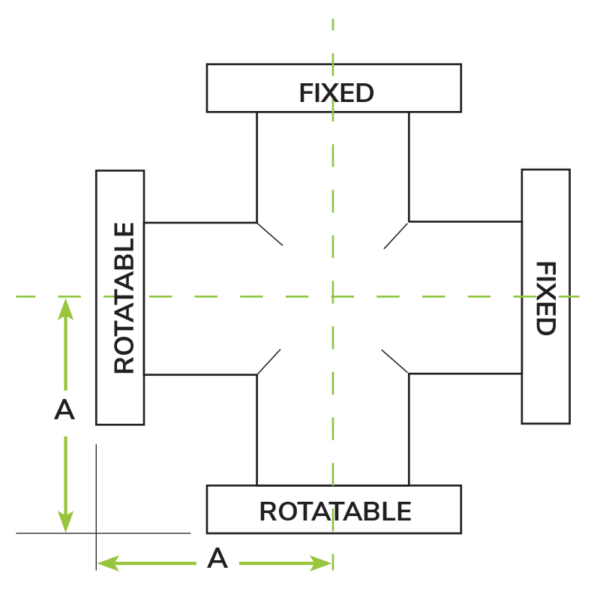

A 2.46
Tube O.D. 1.5
Flange O.D. 2.75
Flange Type CF275
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF275-150-4X-2.46

4-Way Cross with 2.75 in. (DN 40) ConFlat Flanges

$175.00

Available on backorder

Part ID: 5000521


Features

  • Pulled ports for optimum vacuum performance

Specifications

  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range from -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium
