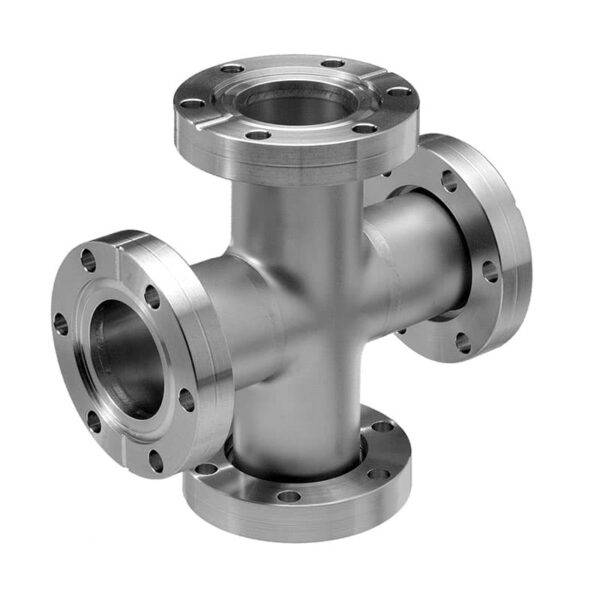

REPRESENTATIVE IMAGE

Attributes

A4.12
Tube O.D.2.5
Flange O.D.4.5
Flange TypeCF450
3D CADLogin
DrawingLogin

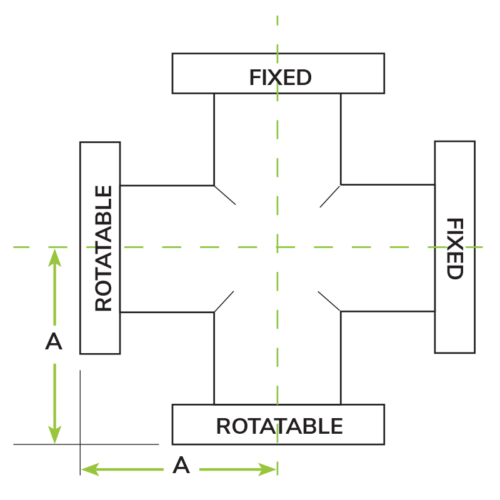

All dimensions are in inches unless otherwise specified.

CF450-250-4X-4.12

4.50 in. (DN 63) ConFlat Flange 4-Way Cross with 4.12 in. Centerline

Part ID: 5000524
$0.00
2 in stock (can be backordered)


Crosses are manufactured with a flange on each end of an “X” shaped section of tubing. Crosses accommodate junctions or alignment considerations for vacuum system design.
Features
  • Pulled ports for optimum vacuum performance
Specifications
  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range from -200°C up to 450°C

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A4.12
Tube O.D.2.5
Flange O.D.4.5
Flange TypeCF450
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
