Attributes

A 2.46
B 1.88
Flange 3 O.D. 1.33
Qty / Product -
Flange 1 & 2 O.D. 2.72
Flange 3 Tube O.D. 0.75
Flange 1 & 2 Tube O.D. 1.5
3D CADLogin
DrawingLogin

CF275XCF133-150x075-R4X-2.46X1.87

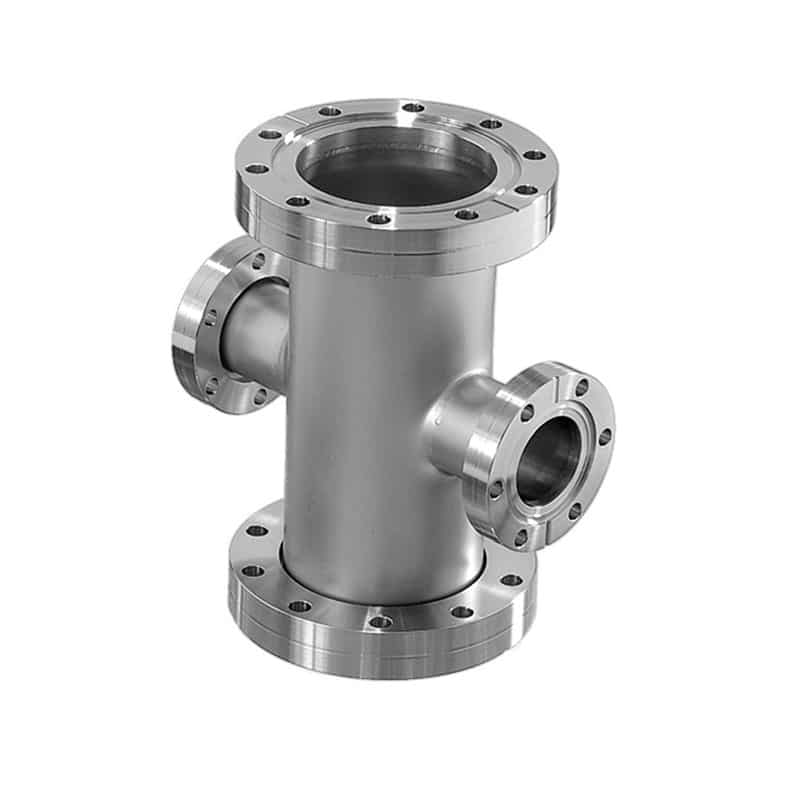

CF275 to CF133 Reducer Cross

$230.00

Part ID: 5000533


Materials:

  • 304L stainless steel



Product Notes:

  • Pulled ports for optimum vacuum performance
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium



Options: Contact us for price and availability

  • Custom lengths
  • Tapped flanges
  • Custom flange combinations
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
