• 5000533
  • 5000533

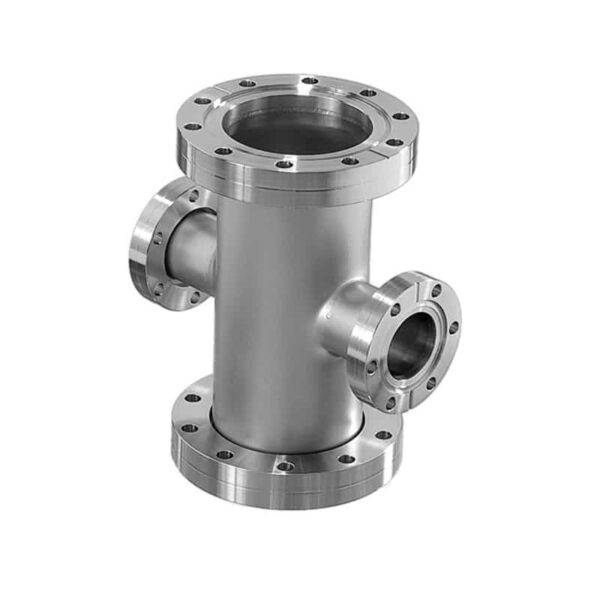

REPRESENTATIVE IMAGE

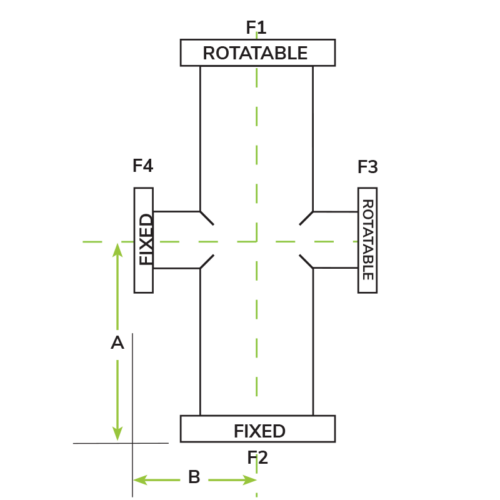

Attributes

A2.46
B2.3
Flange 3 O.D.2.12
Qty / Product-
Flange 1 & 2 O.D.2.72
Flange 3 Tube O.D.1
Flange 1 & 2 Tube O.D.1.5
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF275XCF212-150X100-R4X-2.46X2.29

2.75 in. (DN 40) to 2.12 in. (DN 25) ConFlat Flange Reducer Cross

Part ID: 5000534
$370.80
Standard Lead Time:
Contact
Available on backorder


Crosses are manufactured with a flange on each end of an “X” shaped section of tubing. Crosses accommodate junctions or alignment considerations for vacuum system design.
Features
  • Pulled ports for optimum vacuum performance
Specifications
  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range from -200°C up to 450°C

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A2.46
B2.3
Flange 3 O.D.2.12
Qty / Product-
Flange 1 & 2 O.D.2.72
Flange 3 Tube O.D.1
Flange 1 & 2 Tube O.D.1.5
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
