• 5000563
  • 5000563

REPRESENTATIVE IMAGE

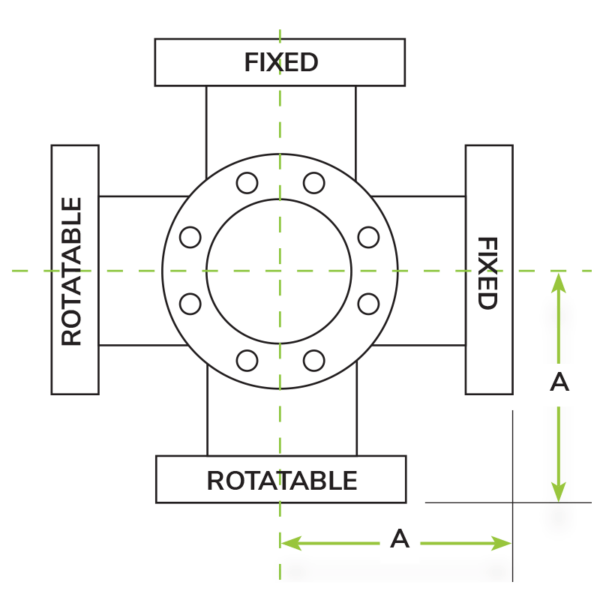

Attributes

A 4.13
Tube O.D. 2.5
Flange O.D. 4.5
Flange Type CF450
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF450-250-5X-4.12

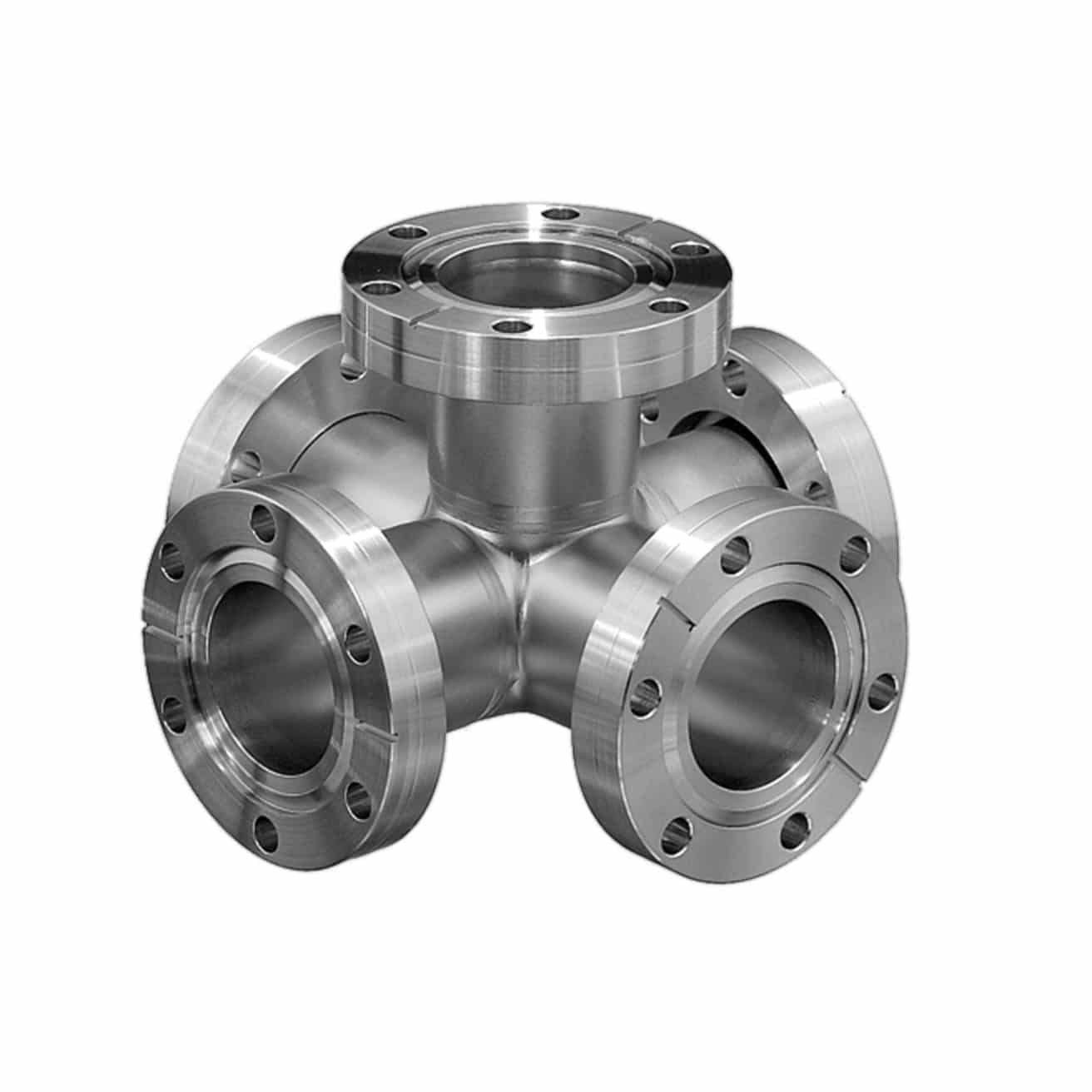

5-Way Cross with 4.50 in. (DN 63) ConFlat Flanges – 4.13 in. Centerline

Part ID: 5000556


















$1,023.75





































			Standard Lead Time:

Contact
















































Available on backorder


















































These fittings are manufactured with a flange on each side of a 5- or 6-sided tubing junction. These crosses accommodate complex junctions or alignment considerations for vacuum system design.




Features






  • Pulled ports for optimum vacuum performance
    •









Specifications






  • Flange Material: 304L Stainless Steel
    •

  • Fitting Material: 304 Stainless Steel
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range from -200°C up to 450°C
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4.13



                    Tube O.D. 2.5



                    Flange O.D. 4.5



                    Flange Type CF450



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
