REPRESENTATIVE IMAGE

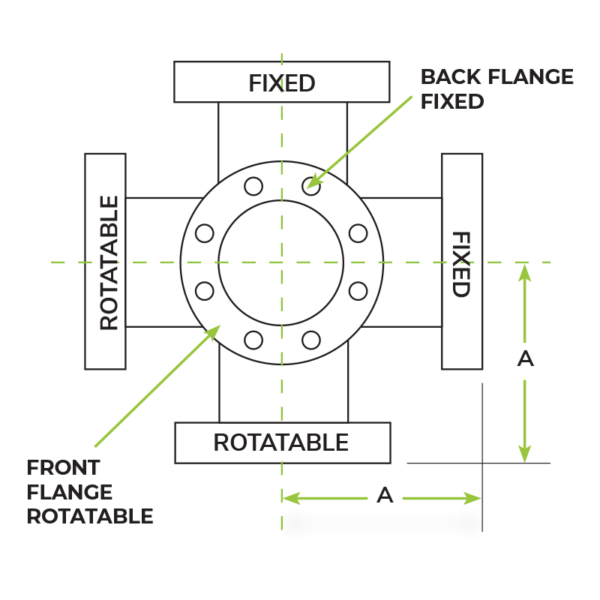

Attributes

A 5.5
Tube O.D. 6
Flange O.D. 8
Flange Type CF800
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF800-600-6X-5.50

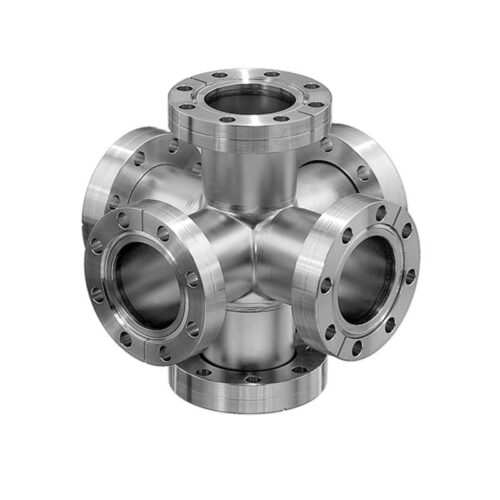

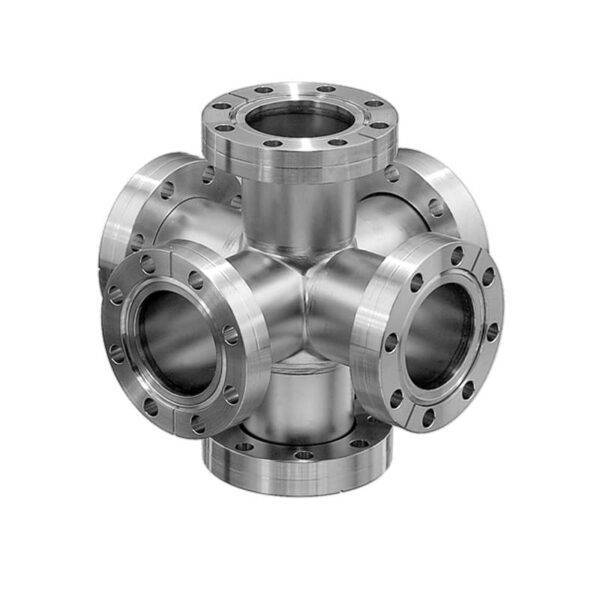

8.00 in. (DN 160) ConFlat Flange 6-Way Cross with 5.50 in. Centerline

Request a Quote for Price

Available on backorder

Part ID: 5000575


Features

  • Pulled ports for optimum vacuum performance

Specifications

  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range from -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 5.5
Tube O.D. 6
Flange O.D. 8
Flange Type CF800
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
