• 5000577
  • 5000577

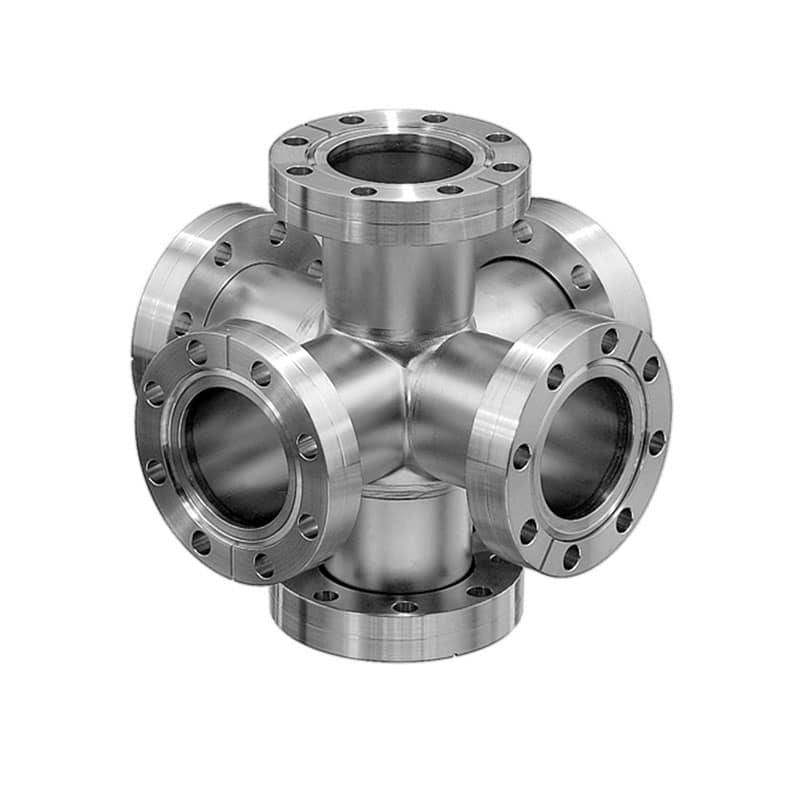

REPRESENTATIVE IMAGE

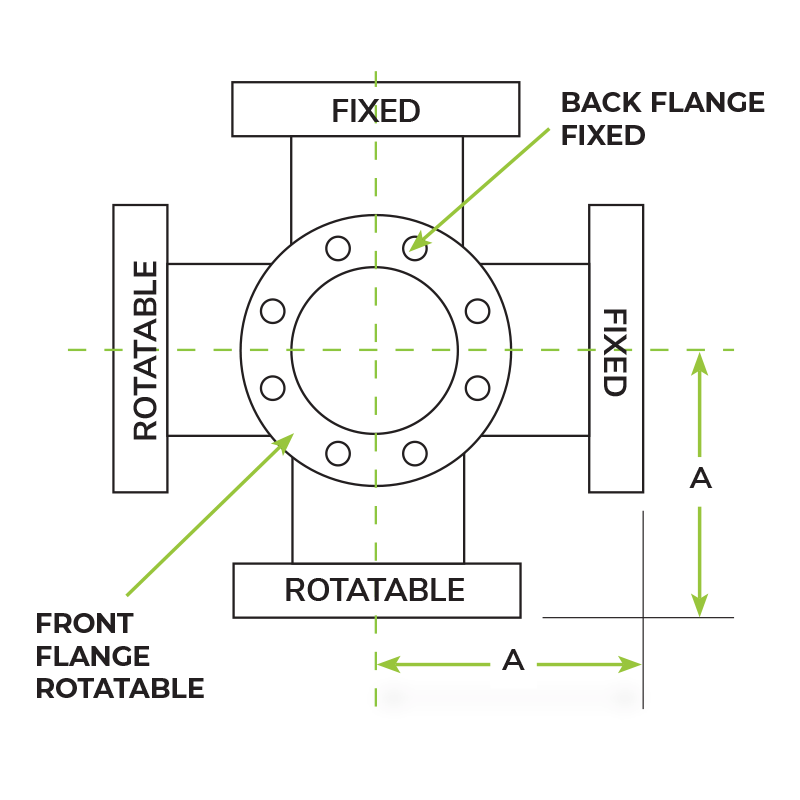

Attributes

A6.56
Tube O.D.6
Flange O.D.8
Flange TypeCF800
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF800-600-6X-6.56

8.00 in. (DN 160) ConFlat Flange 6-Way Cross with 6.56 in. Centerline

Part ID: 5000576
$0.00
Standard Lead Time:
Contact
Available on backorder


These fittings are manufactured with a flange on each side of a 5- or 6-sided tubing junction. These crosses accommodate complex junctions or alignment considerations for vacuum system design.
Features
  • Pulled ports for optimum vacuum performance
Specifications
  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range from -200°C up to 450°C

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A6.56
Tube O.D.6
Flange O.D.8
Flange TypeCF800
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
