CF275TM-000-316LN

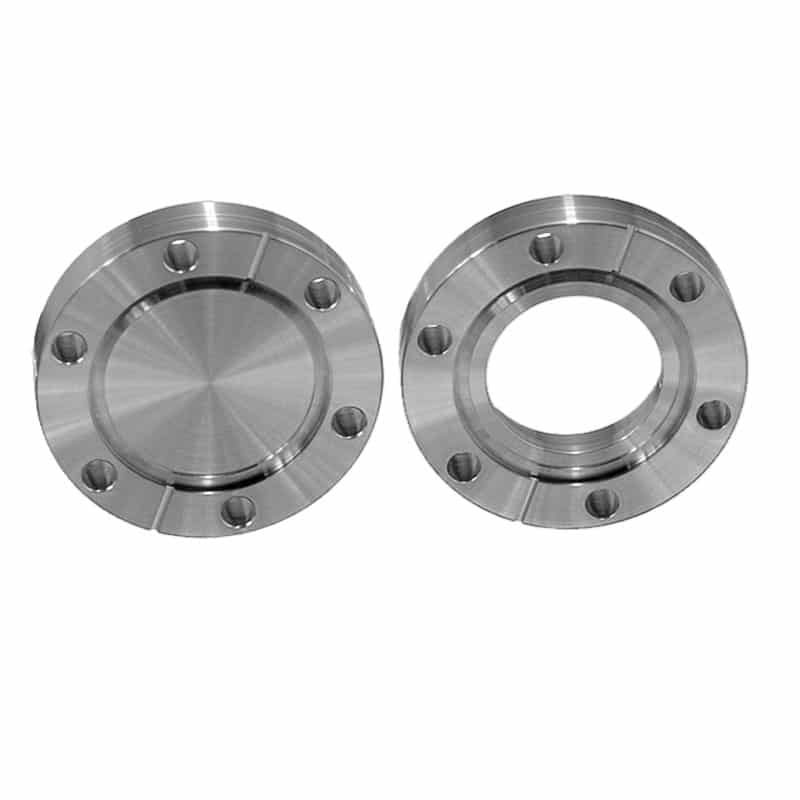

316LN 2.75″ (DN 40) Tapped Metric Blank Fixed ConFlat Flange
Part ID: 5004064
Request a Quote for Price
Available on backorder
| Standard Lead Time: | Contact |
|---|
2.75 inch outer diameter ConFlat (DN35/DN40 CF) nonrotatable flanges ideal for UHV applications requiring low magnetic permeability.
Features
- Designed to fit standard inch tubing O.D.’s
- Self-aligning
- Internal weld
- Sexless flanges
- Tapped and clearance (through-hole) bolt holes available
- Rotatable flanges ease bolt hole alignment
- Interchangeable with other ConFlat style flanges
- Adapters to other flange systems available
Specifications
- Vacuum rating: 1×10-13 Torr
- Temperature range: -200°C to 450°C
- Low magnetic permeability of 1.005 μmax
- Excellent for Beamlines, XHV, X-Ray, and Laser applications
- Heat resistant to higher temperatures
- Increased resistance to irradiation damage
- Resistant to crevice corrosion
- High level of weldability
- Resistant to pitting
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes

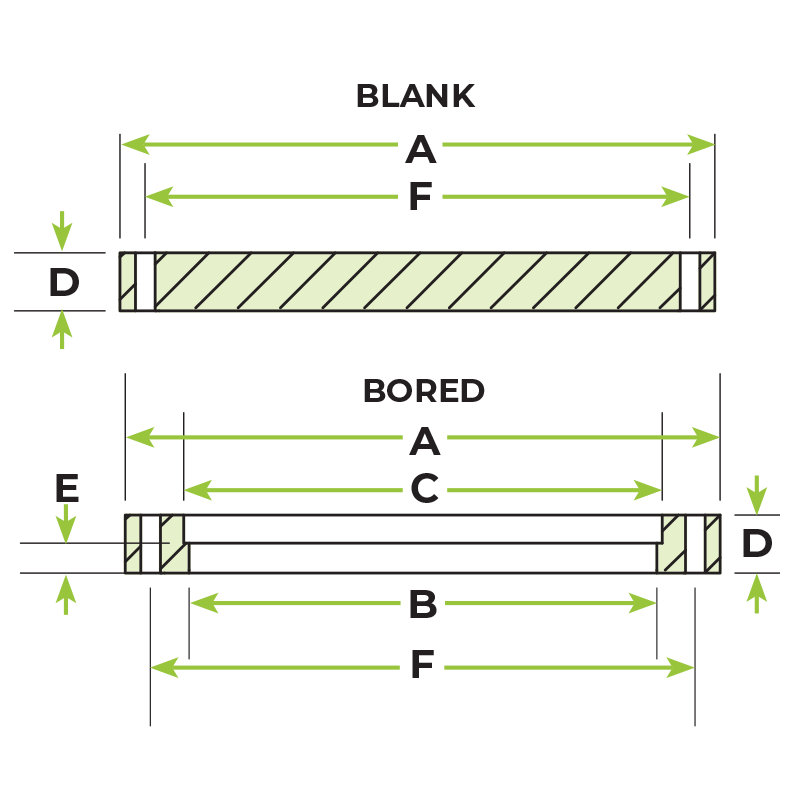

All dimensions are in inches unless otherwise specified.
