CF450R-250-316LN

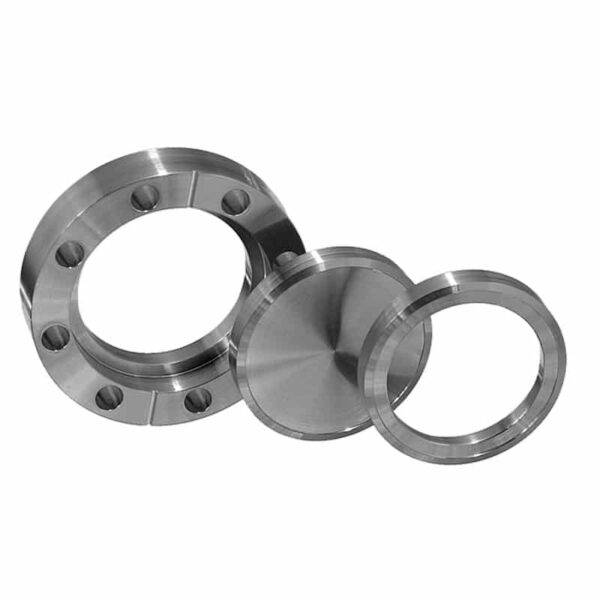

4.50 inch outer diameter ConFlat (DN63 CF) rotatable flanges ideal for UHV applications requiring low magnetic permeability.

Product Features:

• Designed to fit standard inch tubing O.D.’s
• Self-aligning
• Internal weld
• Sexless flanges
• Tapped and clearance (through-hole) bolt holes available
• Rotatable flanges ease bolt hole alignment
• Interchangeable with other ConFlat style flanges
• Adapters to other flange systems available

Product Specifications

• Vacuum rating: 1×10^-13 Torr
• Temperature range: -200°C to 450°C
• Low magnetic permeability of 1.005 μmax
• Excellent for Beamlines, XHV, X-Ray, and Laser applications
• Heat resistant to higher temperatures
• Increased resistance to irradiation damage
• Resistant to crevice corrosion
• High level of weldability
• Resistant to pitting
