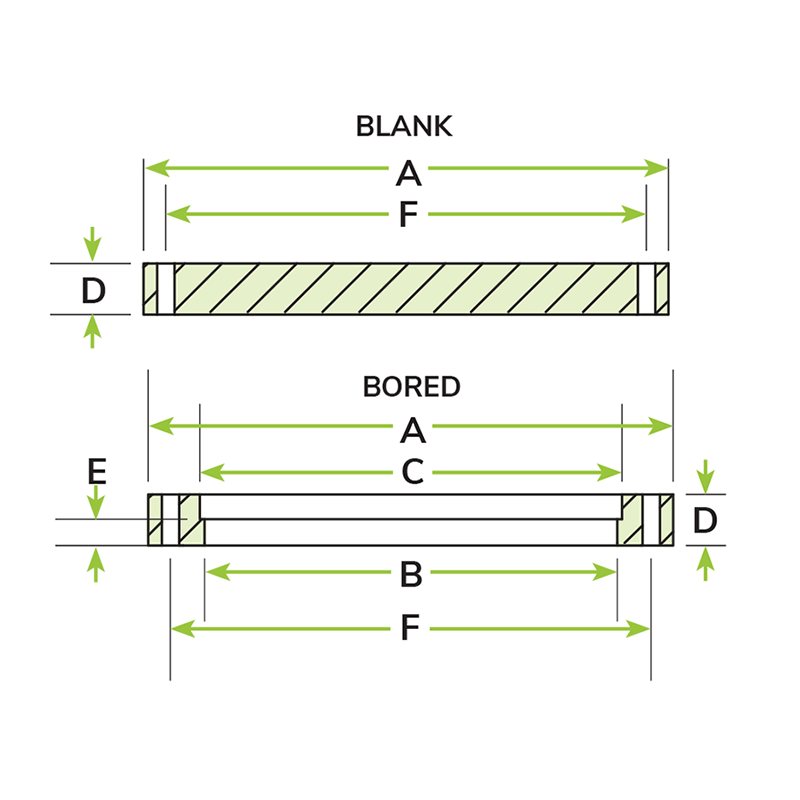

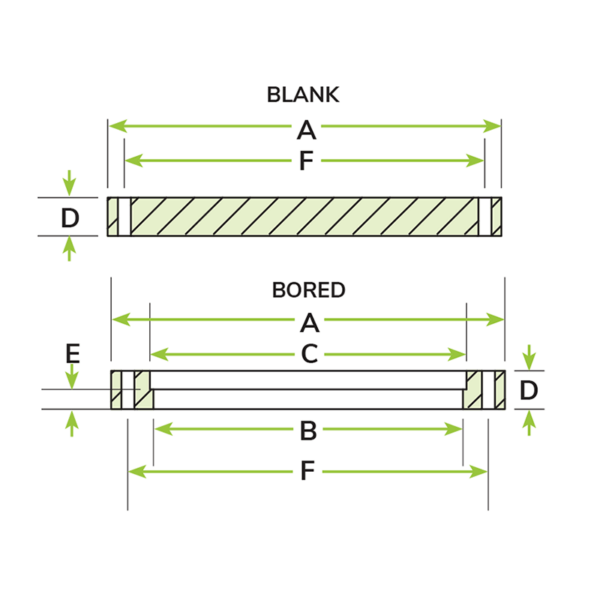

A 9.97
B 7.83
C 8.02
D 0.97
E 0.5
F 9.13
Thrd M8
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 24
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1000TM-800-316LN

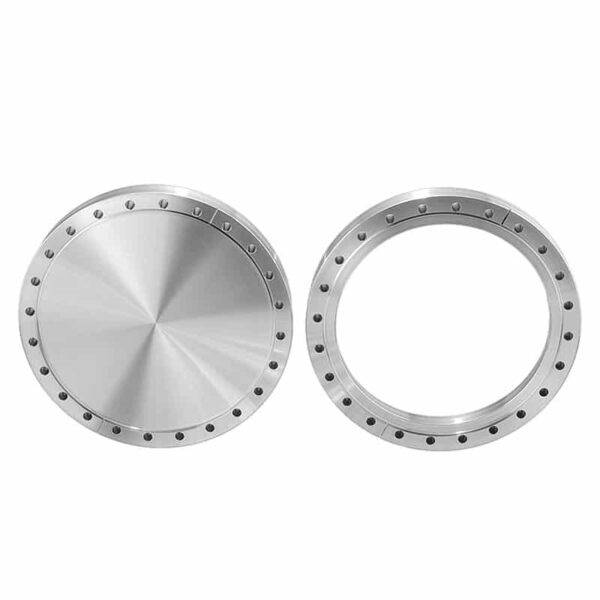

316LN 10.00″ (DN 200) Tapped Metric Fixed ConFlat Flange with 8 in. Inner Diameter

$865.00

4 in stock (can be backordered)

Part ID: 5004159


10.00 inch outer diameter ConFlat (DN200 CF) nonrotatable flanges ideal for UHV applications requiring low magnetic permeability.

Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-hole) bolt holes available
  • Rotatable flanges ease bolt hole alignment
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Specifications

  • Vacuum rating: 1×10-13 Torr
  • Temperature range: -200°C to 450°C
  • Low magnetic permeability of 1.005 μmax
  • Excellent for Beamlines, XHV, X-Ray, and Laser applications
  • Heat resistant to higher temperatures
  • Increased resistance to irradiation damage
  • Resistant to crevice corrosion
  • High level of weldability
  • Resistant to pitting
