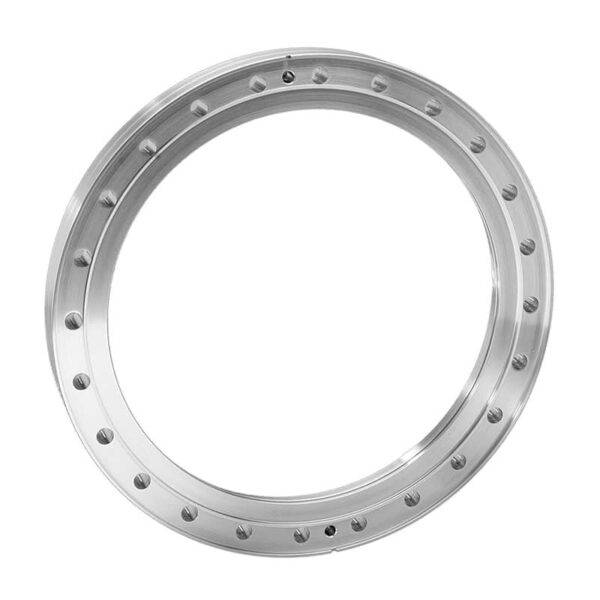

REPRESENTATIVE IMAGE

Attributes

A 27.13
B 25.84
C 23.75
D 24
E 1.75
F 0.63
Bolt Holes 40
Nominal Tube O.D. 24
Nominal Flange O.D. 22.13
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

WF2700F-2400

Wire Seal Flange Female, Bored 27.00″ Standard

Request a Quote for Price

Available on backorder

Part ID: 5500035











Features






  • Designed to fit standard inch tubing O.D.’s
    •

  • Self-aligning
    •

  • Internal weld
    •

  • Blank flanges close unused ports or custom modify
    •

  • Standard blank flanges are manufactured from solid stainless steel plate for highest sealing reliability
    •

  • Dish head blank flanges have a stainless steel disk welded onto the back of a bored flange. This option weighs less and costs less. Dish head blank flanges have a “-d” suffix on the Reference ID.
    •









Specifications






  • Flange: 304L Stainless Steel
    •

  • Sizes: outer diameter 12 3/8 inches up to 27 1/8 inches (for tubing diameter 10 inches up to 24 inches)
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range: -200°C up to 450°C
    •
