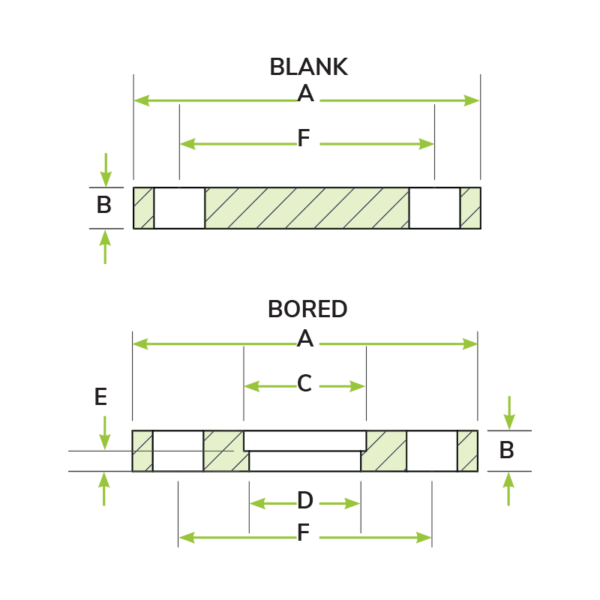

REPRESENTATIVE IMAGE

Attributes

A 5
B 0.5
C BLANK
D -
E -
F 3.88
Bolt Hole NO. 4
Bolt Hole Size 0.625
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA150-000

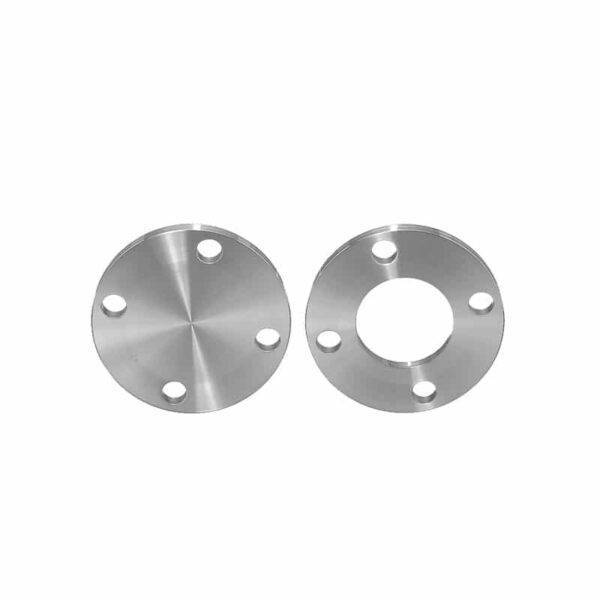

150ASA Fixed Blank

Original price was: $112.00.Current price is: $89.60.

5 in stock (can be backordered)

Part ID: 6000003




Materials

  • Flanges: 304L stainless steel
  • Flexible hose: 321 stainless steel formed bellows

Product Notes

  • Corrects misaligned connections
  • One fixed and one rotatable flange per fitting
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
    • ASA100: $20.00
    • ASA150: $20.00
    • ASA200: $20.00
    • ASA300: $35.00
    • ASA400: $35.00
    • ASA600: $50.00
    • ASA800: $55.00
    • ASA1000: $60.00

Options

  • Contact us for price and availability
