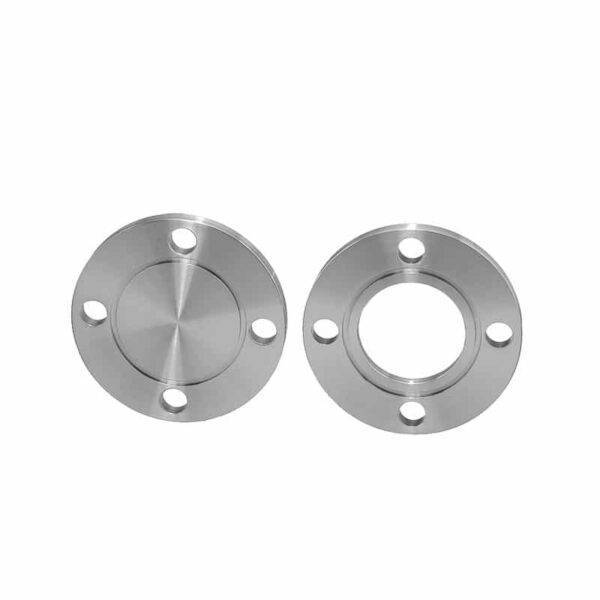

REPRESENTATIVE IMAGE

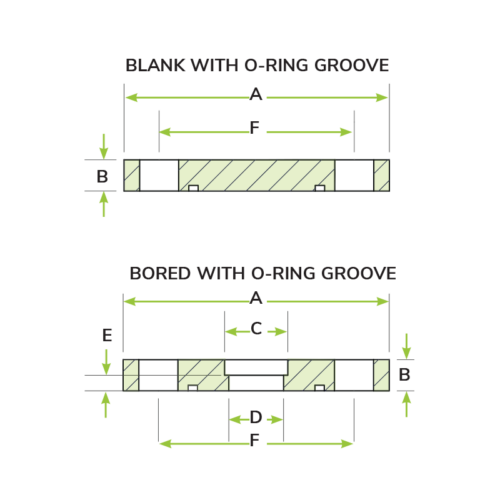

Attributes

A 6
B 0.5
C 2.51
D 2.375
E 0.25
F 4.75
Bolt Hole NO. 4
Bolt Hole Size 0.75
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA200G-250

200ASA Grooved 2-1/2 in. ID

Original price was: $240.00.Current price is: $180.00.

Your Price

5 in stock (can be backordered)

Part ID: 6000037









ASA fixed grooved bored flanges are manufactured with a weld prep and tubing bore for immediate installation on your system with no additional alteration.




Features






  • Designed to fit standard inch tubing O.D.’s
    •

  • Self-aligning
    •

  • Internal weld
    •

  • Interchangeable with other ASA/ANSI style flanges
    •









 Specifications






  • Pressure range: HV (approx. 1×10-8 Torr)
    •

  • Temperature range: -20°C to 200°C
    •

  • Standard materials: 304L stainless steel
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 6



                    B 0.5



                    C 2.51



                    D 2.375



                    E 0.25



                    F 4.75



                    Bolt Hole NO. 4



                    Bolt Hole Size 0.75



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
