REPRESENTATIVE IMAGE

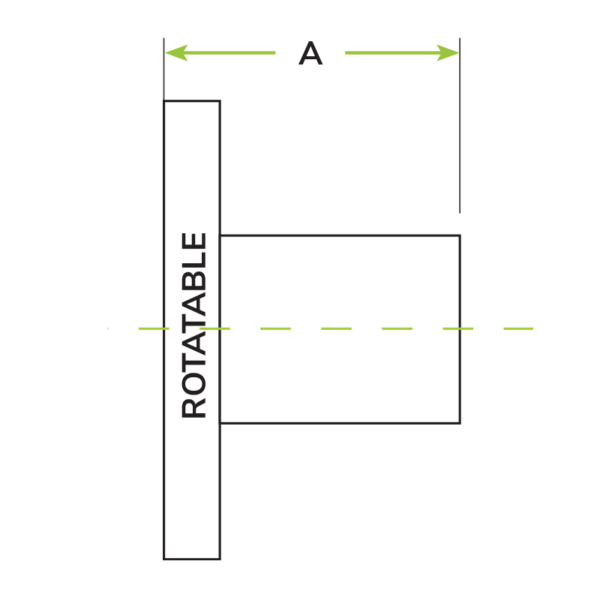

Attributes

A9.88
Tube O.D.10
Flange O.D.13.5
Tube Wall Thickness0.12
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA800R-1000-HN-9.88

ASA800 10 in. Tube Rotatable Half Nipple

Part ID: 6000199
$672.59
Standard Lead Time:
Contact
Available on backorder


These fittings are manufactured with a flange on one end and raw tubing on the other. Half nipples are often welded onto a custom vacuum system or instrument by a customer. However, these fittings can also be used with quick connect compression fittings to make a vacuum tight connection without welding.
Features
  • Clearance bolt holes
  • Buttweld
  • Designed to fit standard inch tubing O.D.’s
  • Highly customizable
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
      • ASA100: $ 20.00
      • ASA150: $ 20.00
      • ASA200: $ 20.00
      • ASA300: $ 35.00
      • ASA400: $ 35.00
      • ASA600: $ 50.00
      • ASA800: $ 55.00
      • ASA1000: $ 60.00
 Specifications
  •  Flange Material: 304L Stainless Steel
  •  Fitting Material: 304 Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A9.88
Tube O.D.10
Flange O.D.13.5
Tube Wall Thickness0.12
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
