REPRESENTATIVE IMAGE

Attributes

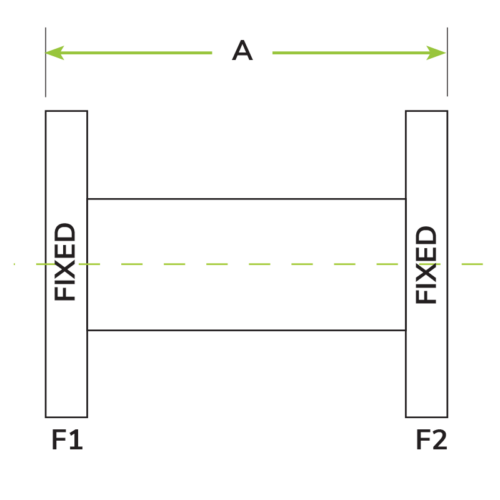

A 6.5
Tube O.D. 2
Flange O.D. 5
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA150XASA150-200-N-6.50

ASA150 2 in. Fixed Nipple 6.5 in. OAL

Part ID: 6000224


$333.90

Standard Lead Time:

Contact

Available on backorder

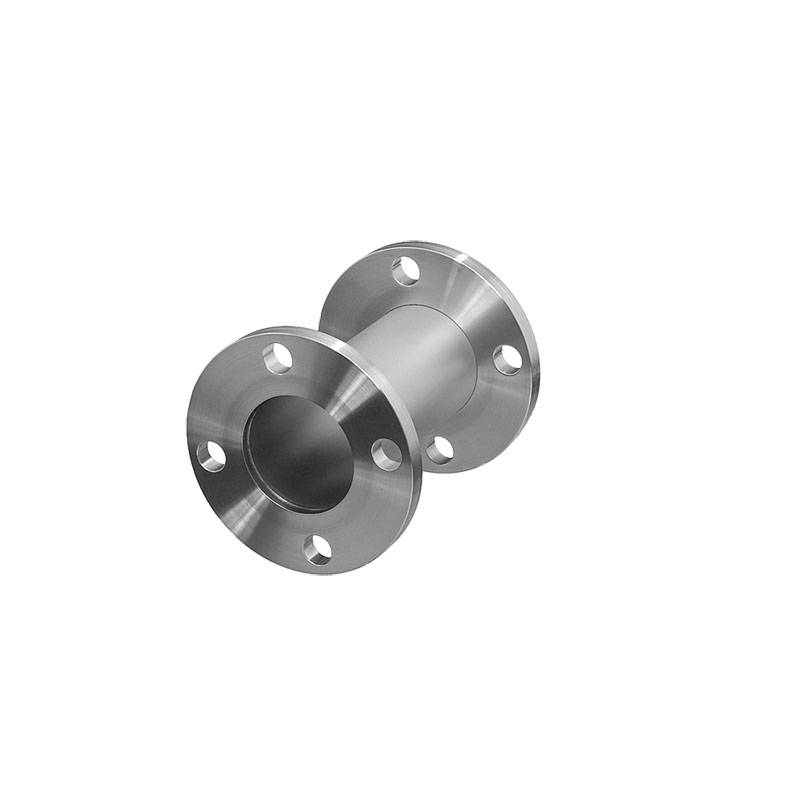

Nipples are manufactured with a flange on each end of a straight section of tubing. They are used to create a weld free straight connection within a vacuum system. Nipples are also used as straight adapters between different tubing sizes or flange types.

  • Same size flange on both ends
  • Both flanges have a fixed bolt hole orientation
  • Custom lengths and custom flange combinations available
  • Highly customizable
  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 6.5
Tube O.D. 2
Flange O.D. 5
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
