REPRESENTATIVE IMAGE

Attributes

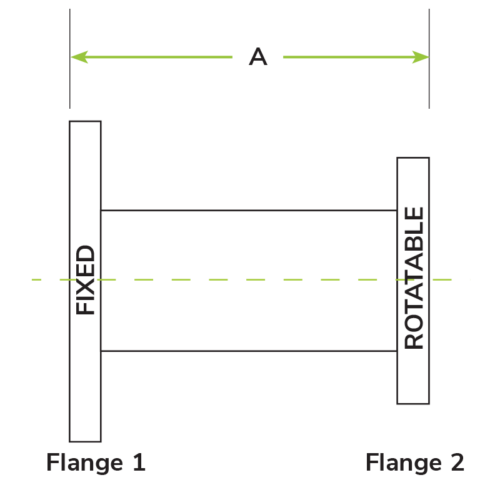

A 5
Price $0.00
Tube O.D. 1
Flange 1 O.D. 16
Flange 2 O.D. 13.5
Qty / Product
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA1000XASA800R-1000-N-5.00

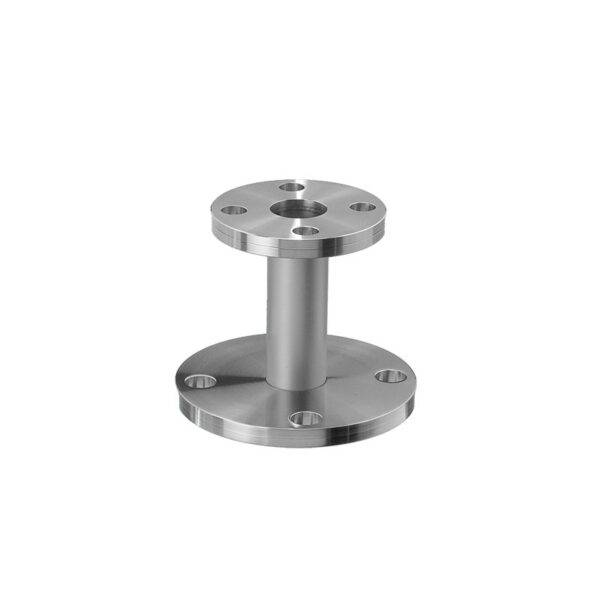

Rotatable ASA1000/ASA800 Red. Nipple

$0.00

Available on backorder

Part ID: 6000375


Features

  • Connects different size ASA/ANSI flanges
  • One fixed and one rotatable flange per fitting
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
      • ASA100: $ 20.00
      • ASA150: $ 20.00
      • ASA200: $ 20.00
      • ASA300: $ 35.00
      • ASA400: $ 35.00
      • ASA600: $ 50.00
      • ASA800: $ 55.00
      • ASA1000: $ 60.00

Specifications

  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 5
Price $0.00
Tube O.D. 1
Flange 1 O.D. 16
Flange 2 O.D. 13.5
Qty / Product
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
