• 6000640
  • 6000640

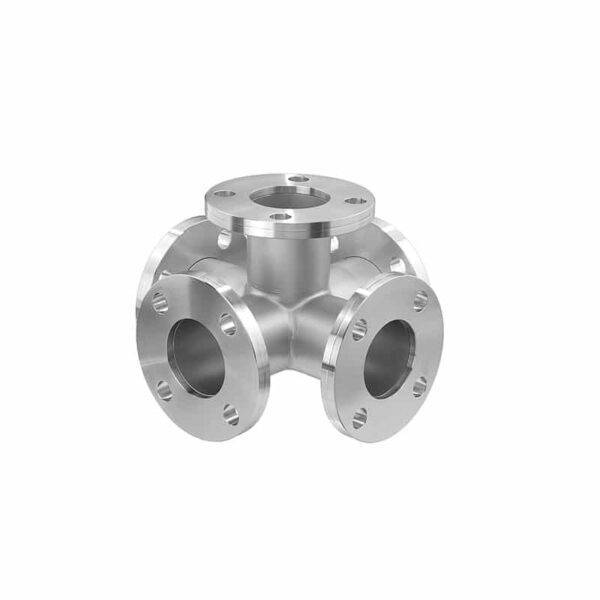

REPRESENTATIVE IMAGE

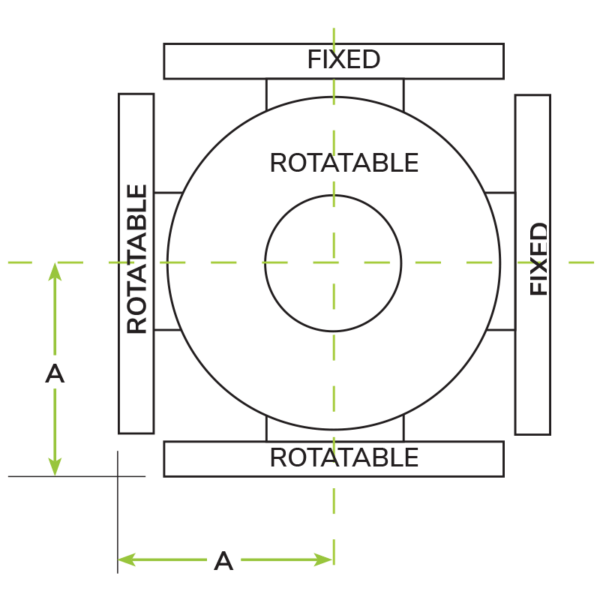

Attributes

A5.12
Tube O.D.4
Flange O.D.7.5
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA300-400-5X-5.12

Rotatable ASA300 5-Way Cross 4 in.

Part ID: 6000646
$1,981.72
Standard Lead Time:
Contact
Available on backorder


Crosses accommodate junctions or alignment considerations for vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types.
Features
  • Pulled ports for optimum vacuum performance
  •  One fixed and one rotatable flange per axis
  • Vacuum rated: of 1×10-8 Torr
  •  Temperature range of -20°C to 200°C
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
      • ASA100: $ 20.00
      • ASA150: $ 20.00
      • ASA200: $ 20.00
      • ASA300: $ 35.00
      • ASA400: $ 35.00
      • ASA600: $ 50.00
      • ASA800: $ 55.00
      • ASA1000: $ 60.00
 Specifications
  •  Flange Material: 304L Stainless Steel
  •  Fitting Material: 304 Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A5.12
Tube O.D.4
Flange O.D.7.5
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
