600ASA-600-6X

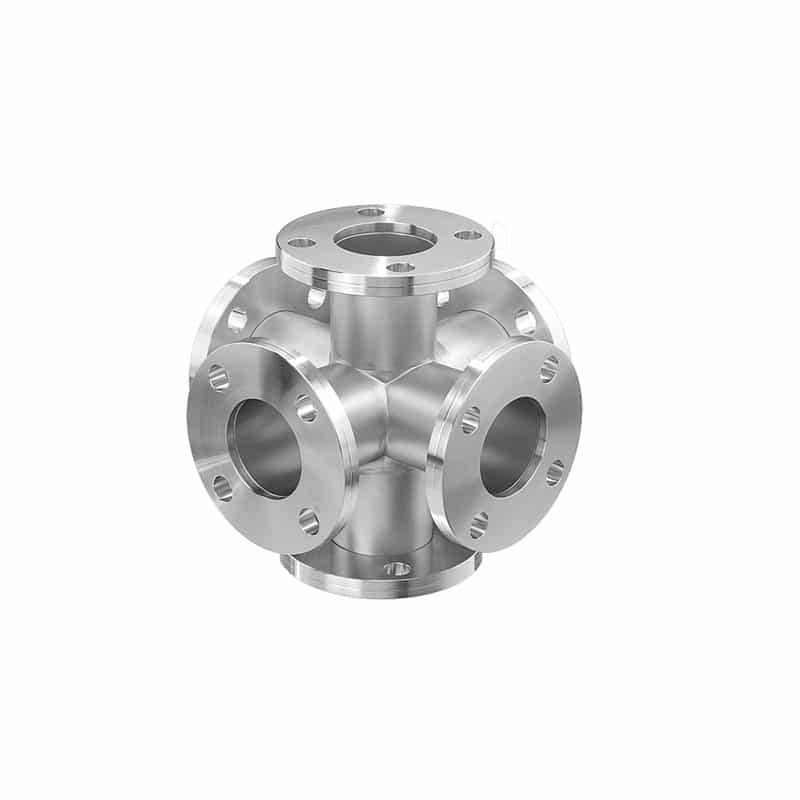

Fixed ASA600 6-Way Cross 6 in.
$4,104.55
Part ID: 6000664
Crosses accommodate junctions or alignment considerations for vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types.
Features
- Pulled ports for optimum vacuum performance

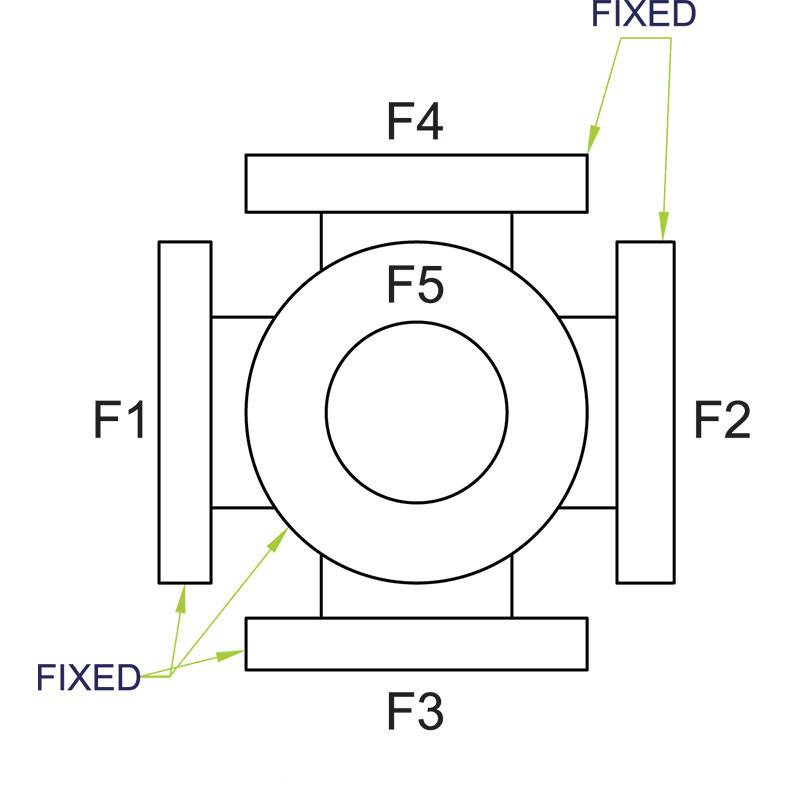

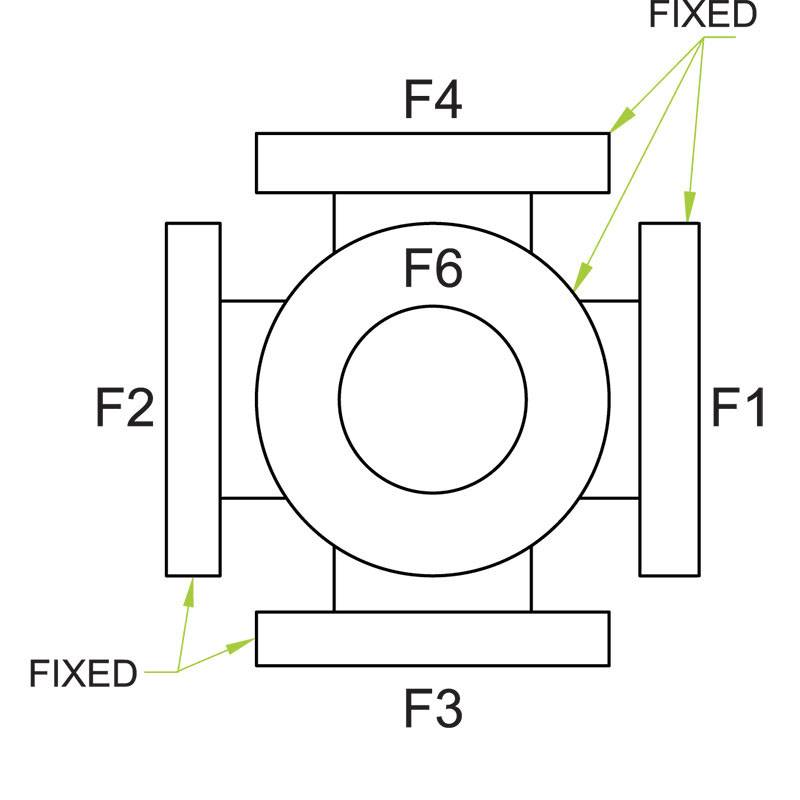

- flanges have a fixed bolt hole configuration
- Vacuum rated: of 1×10-8 Torr
- Temperature range of -20°C to 200°C
- O-ring groove available
- ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
- ASA100: $ 20.00
- ASA150: $ 20.00
- ASA200: $ 20.00
- ASA300: $ 35.00
- ASA400: $ 35.00
- ASA600: $ 50.00
- ASA800: $ 55.00
- ASA1000: $ 60.00
- ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
Specifications
- Flange Material: 304L Stainless Steel
- Fitting Material: 304 Stainless Steel
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
All dimensions are in inches unless otherwise specified.
