Attributes

A8
B7.3
C10.4
ConnectionLF100 FLANGE
3D CADLogin
DrawingLogin

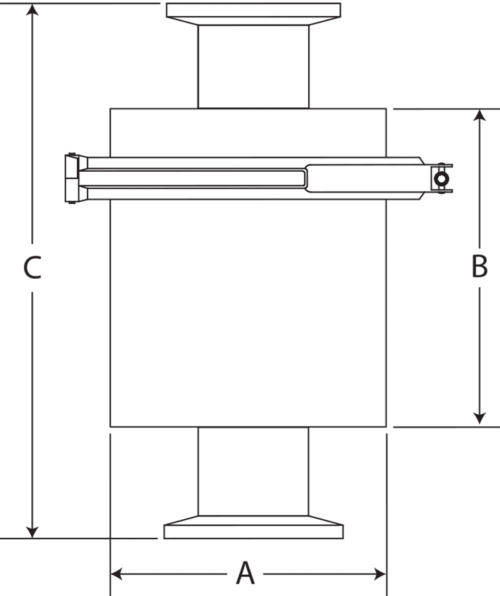

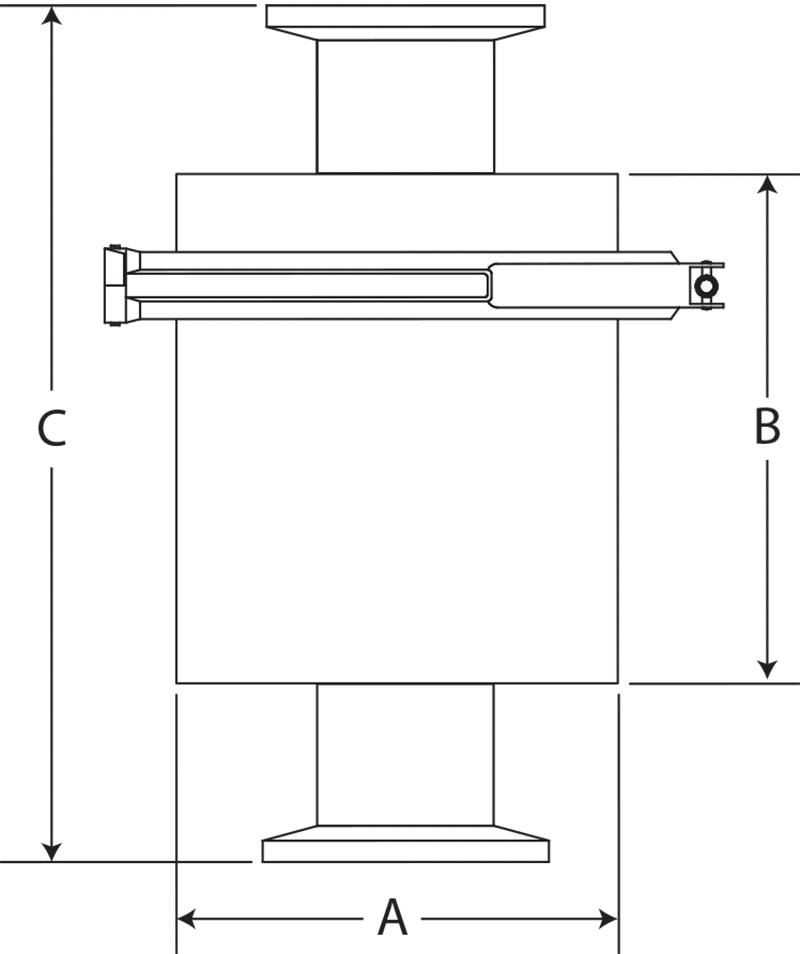

All dimensions are in inches unless otherwise specified.

VSRC-800-LF100-S

8″diameter Rechargeable Trap with Stainless Steel Media and F100 Flange Connection

Part ID: 7500180
Request a Quote for Price
Available on backorder
Standard Lead Time:
Contact

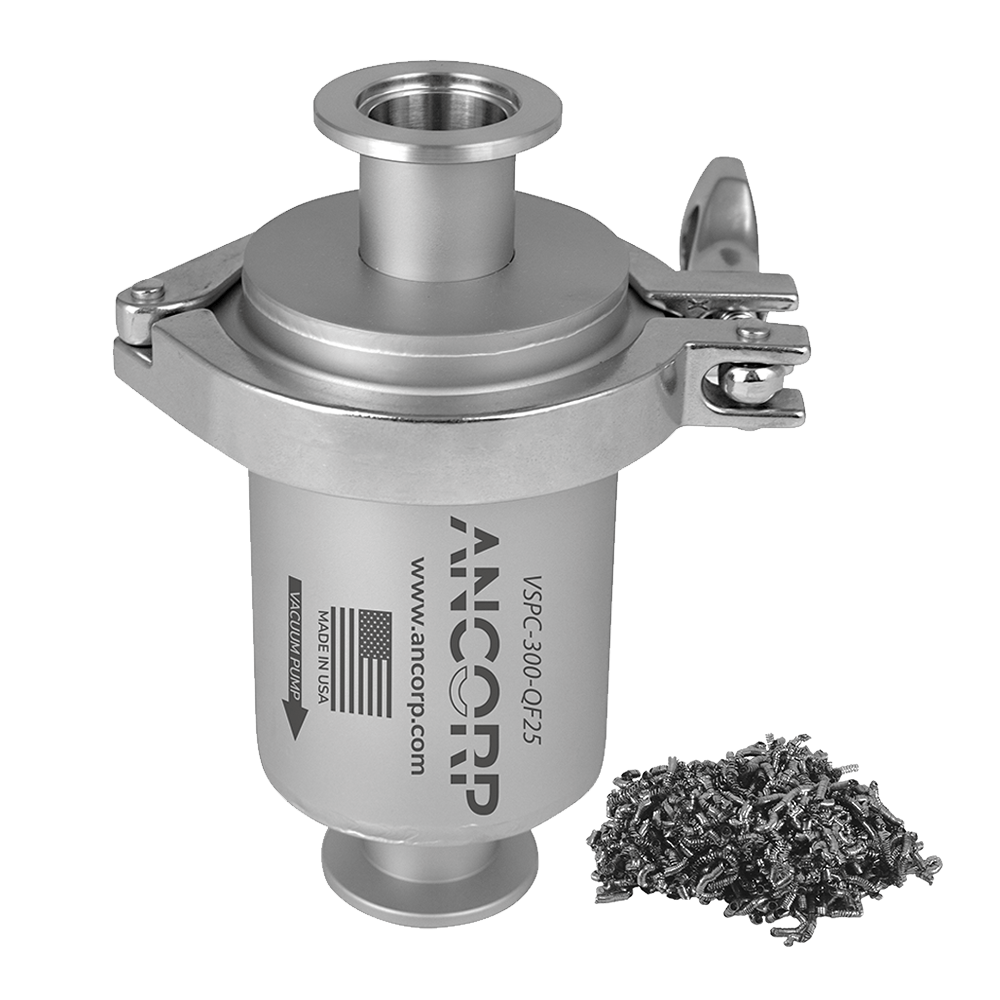

The VSRC series foreline trap provides a rechargeable shield within your vacuum system. These traps can protect your system from backstreaming pump oil and/or your pump from contaminates created upstream within your system.
  • Fully charged
  • Flanged body connection for large body diameter to ease assembly and ensure consistent seals.
  • 2-stage trapping system
    • Stage 1: stainless steel baffle – extends the life of the media
    • Stage 2: coalescing media
  • Materials:
  • Body, flanges and baffle: 304L stainless steel electropolished
  • Seal: Buna-N
  • Trapping media: STAINLESS STEEL. Provides protection from pump fluid back streaming. Maximizes time between cleaning services and provides better performance in corrosive environments.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A8
B7.3
C10.4
ConnectionLF100 FLANGE
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
