REPRESENTATIVE IMAGE

Attributes

DescriptionCF1000 Zero-Length Glass Viewport
Flange Size10

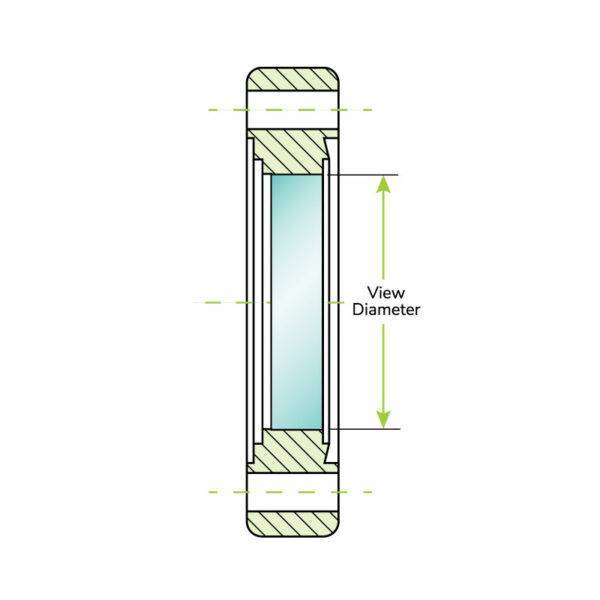

View Diameter5.354
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1000-ZLVP-5.354

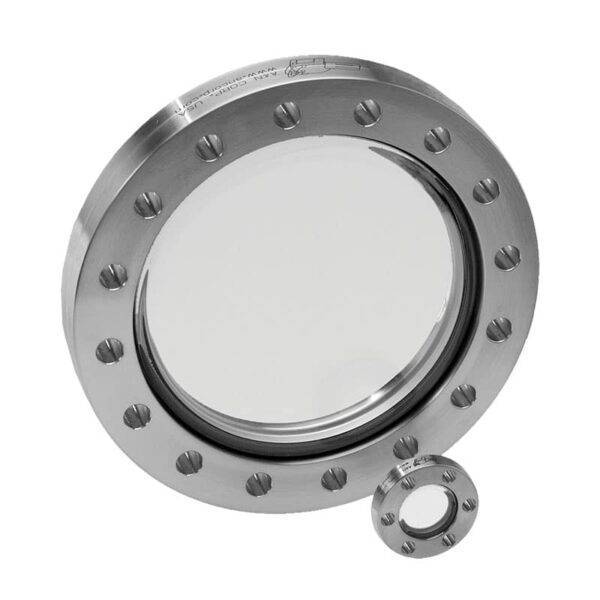

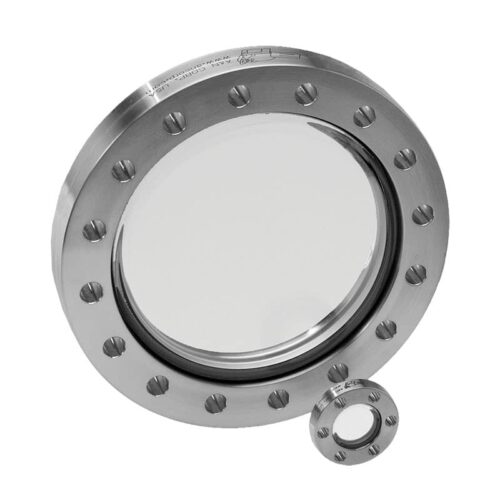

Zero-Length Kodial 7056 Borosilicate Glass Viewport with 10.00 in. (DN 200) ConFlat Flange

Part ID: 9110034
$1,075.00
Standard Lead Time:
Contact
Available on backorder

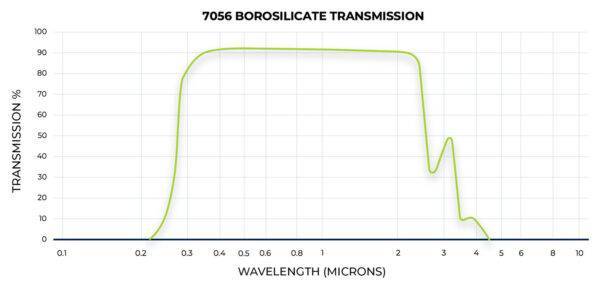

Kodial 7056 borosilicate glass viewports are excellent general-purpose windows for observation within a vacuum chamber. Borosilicate glass has a low coefficient of thermal expansion and has high transmission in the visible range.
Features
  • Vacuum rating of 1×10-10 torr
  • Maximum temperature: 350°C
  • Minimum temperature: -20°C
Specifications
  • Max Rate of Temperature Change: 3°C per minute
  • Do not expose to pressure above 1 atmosphere
  • Materials:
  • Flange material is 304L stainless steel
  •  Viewing window is Kodial 7056 borosilicate glass
  • Transition material is Kovar

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
DescriptionCF1000 Zero-Length Glass Viewport
Flange Size10
View Diameter5.354
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
