REPRESENTATIVE IMAGE

Attributes

Description CF275 DUV Grade (Laser) Fused Silica Viewport w/ Broadband AR Coating for 425-760nm
Flange Size 2.75

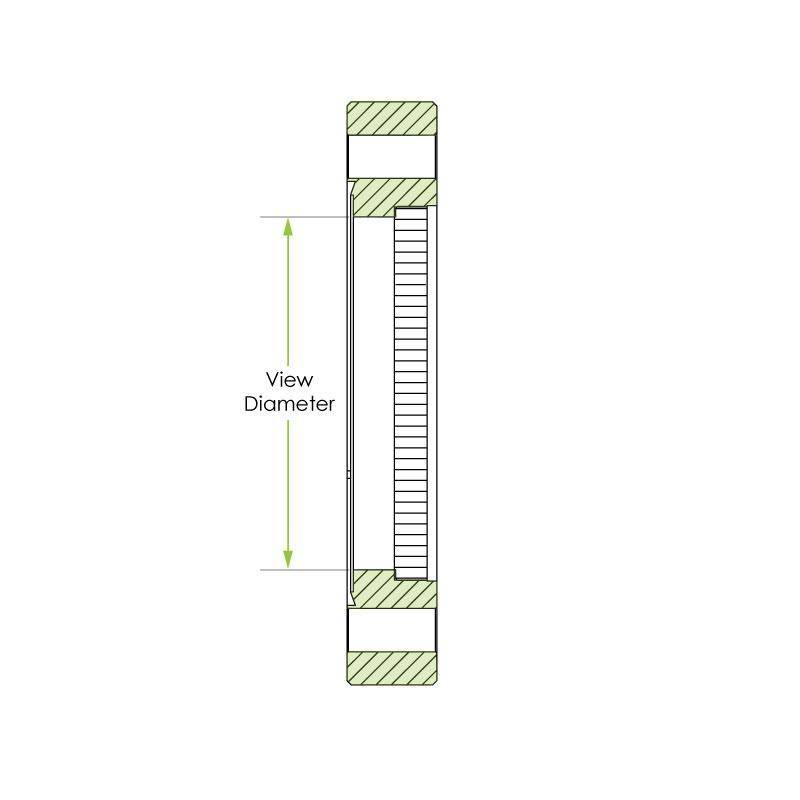

View Diameter 1.4
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF275-ZLVP-Q-DUV-BBAR-425-760-1.40

DUV Fused Silica Viewport with 2.75 in. (DN 40) ConFlat Flange – Broadband AR Coating

$835.00

Available on backorder

Part ID: 9118054











Description






  • DUV grade (laser) fused silica viewport
    •

  • Broadband AR coating
    •

  • Laser grade fused silica windows
    •

  • Broadband anti-reflective coating for optimum performance
    •

  • Bakeable to 200°C
    •

  • Non-magnetic materials
    •

  • Zero-length profile
    •

  • UHV compatible
    •









Specifications






  • Flange material: 304 stainless steel
    •

  • Window material: Corning HPFS 7980 fused silica or equivalent
    •

  • TWD < λ/4 @ 632nm (peak to valley)
    •

  • Parallelism: < 10 arc seconds
    •

  • Surface finish: 20/10 scratch-dig
    •

  • Thermal range: -100°C to 200°C
    •

  • Bake-out ramp rate: 20°C per minute
    •

  • Homogeneity grade: A
    •

  • Inclusion class: 0
    •

  • BBAR coated both sides:



    • 425-760nm, R avg. < 0.5% per surface
      •

    • 550-1100nm, R avg. < 0.5% per surface
      •



    •

  • Laser damage threshold: 10 J/cm2 for 10 ns pulse
    •

  • Leak rate < 1 X 10-9 atm-cc/sec He
    •









Options: Call for price and delivery






  • All Titanium Viewports
    •

  • Weld Adapters
    •

  • Re-entrant Designs
    •

  • ISO Flanges
    •

  • AR Coating for 1550nmAR Coating for 808nm
    •

  • Dual AR Coatings
    •

  • EUV Grade (Excimer) Viewports
    •

  • IR Grade (Low OH) Viewports
    •

  • Geochronological Viewports
    •

  • Custom viewports and coatings
    •
