• Borosilicate glass transmission chart
  • 9110025
  • Borosilicate glass transmission chart
  • 9110025

REPRESENTATIVE IMAGE

Attributes

Description CF338 Zero-Length Glass Viewport
Flange Size 3.38
DrawingLogin
3D CADLogin

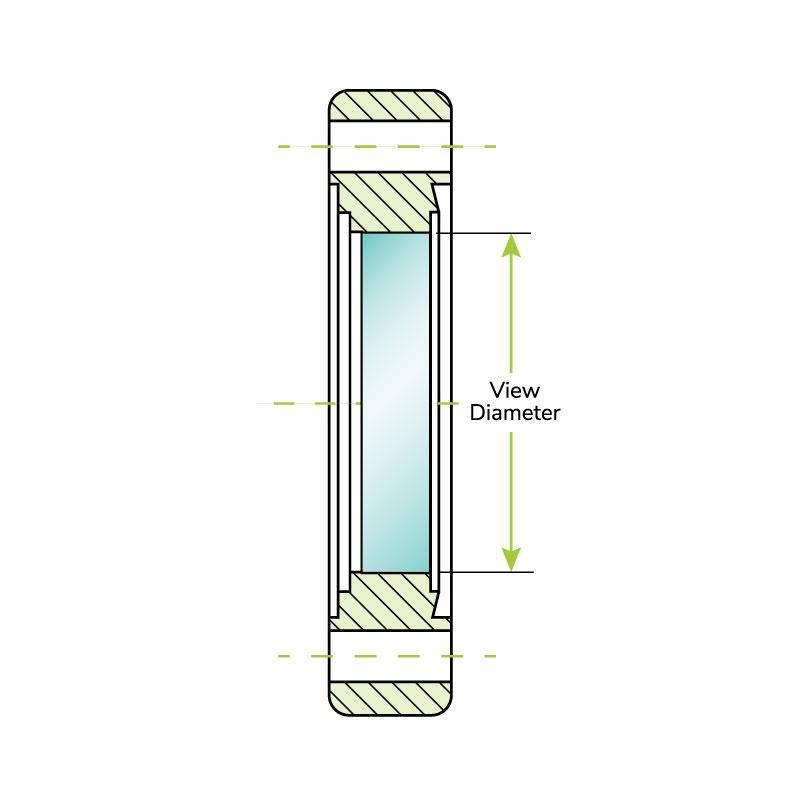

View Diameter 1.496

All dimensions are in inches unless otherwise specified.

CF338-ZLVP-1.496

CF338 (DN 50) Zero-Length Kodial 7056 Borosilicate Glass Viewport

$295.00

Available on backorder

Part ID: 9110506











Features






  • Vacuum rating of 1×10-10 torr
    •

  • Maximum temperature: 350°C
    •

  • Minimum temperature: -20°C
    •









Specifications






  • Max Rate of Temperature Change: 3°C per minute
    •

  • Do not expose to pressure above 1 atmosphere
    •

  • Materials:
    •





  • Flange material is 304L stainless steel
    •

  •  Viewing window is Kodial 7056 borosilicate glass
    •

  • Transition material is Kovar
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    Description CF338 Zero-Length Glass Viewport



                    Flange Size 3.38



                    DrawingLogin







                    3D CADLogin



                    View Diameter 1.496

















All dimensions are in inches unless otherwise specified.
