• 9110025
  • 9118003
  • 9110025
  • 9118003

REPRESENTATIVE IMAGE

Attributes

A 4.47
B 2.88
C 2.5
Description 2.5 in. Weldable Glass Viewport
View Diameter 2.38
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

250-WVP-2.50

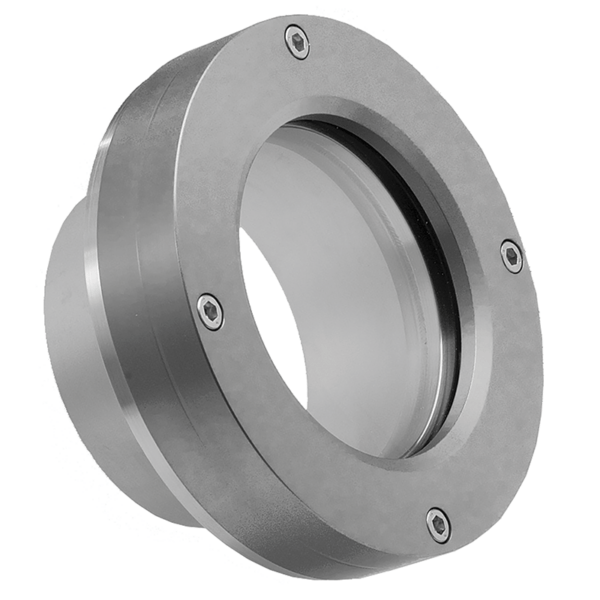

2.5″ Weldable Glass Viewport

$400.00

Available on backorder

Part ID: 9118003











Features






  • Vacuum rating of 1×10-8 torr
    •

  •  Maximum temperature: 150°C
    •

  • Avoid thermal changes in excess of 10°C/minute
    •

  • Do not expose to pressure above 1 atmosphere
    •









Specifications






  •  Materials:
    •





  •  Body: 304L Stainless Steel
    •

  •  Seal: FKM
    •

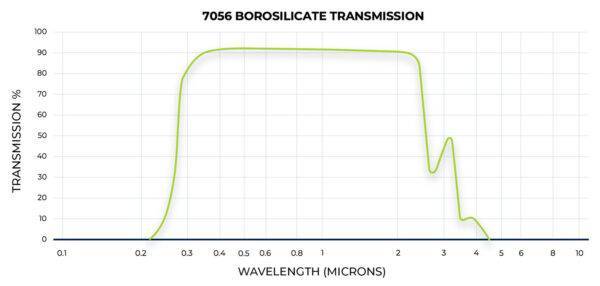

  •  Viewing Window: Borosilicate Glass (Borofloat® 33)
    •

  •  Retaining Flange: Aluminum
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4.47



                    B 2.88



                    C 2.5



                    Description 2.5 in. Weldable Glass Viewport



                    View Diameter 2.38



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
