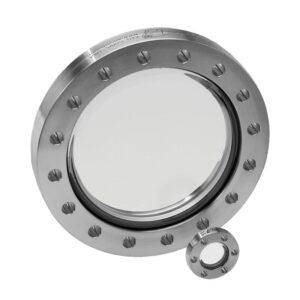

REPRESENTATIVE IMAGE

Attributes

Description CF800 Zero-Length Glass Viewport
Flange Size 8

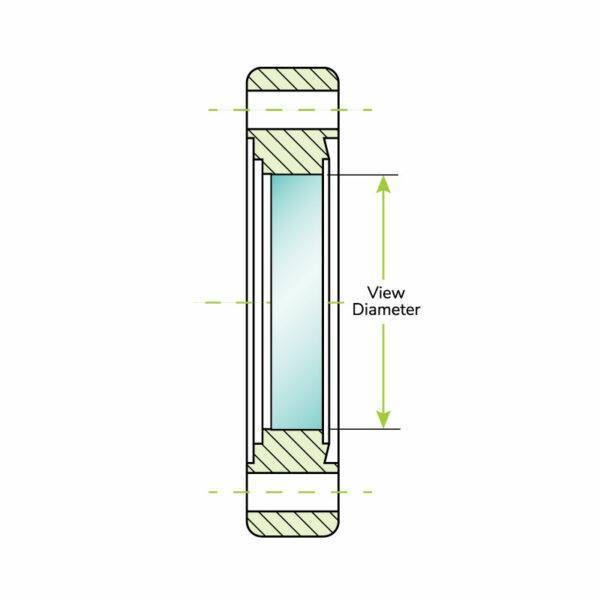

View Diameter 5.354
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF800-ZLVP-5.354

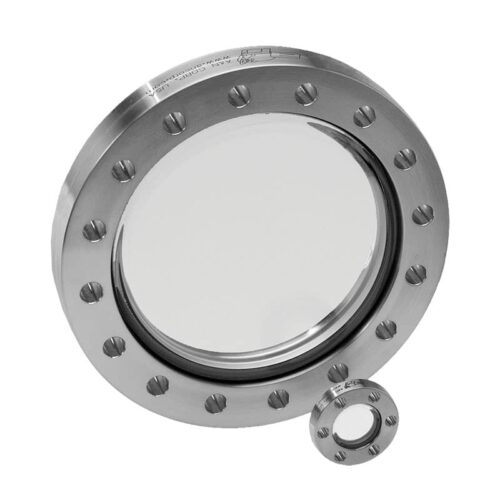

Zero-Length Kodial 7056 Borosilicate Glass Viewport with 8.00 in. (DN 160) ConFlat Flange

$980.00

Available on backorder

Part ID: 9110033









Features




  • Vacuum rating of 1×10-10 torr
    •

  • Maximum temperature: 350°C
    •

  • Minimum temperature: -20°C
    •

  • ConFlat flange
    •

  • Flange material is 304 stainless steel
    •

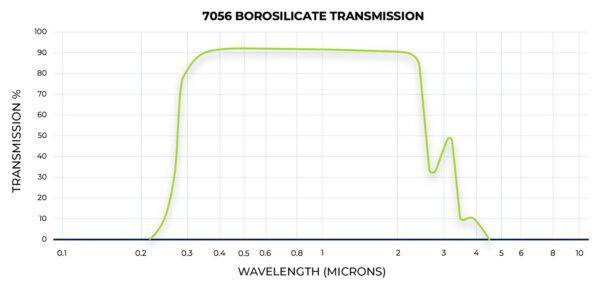

  • Viewing window is 7056 borosilicate glass
    •

  • Transition material is Kovar
    •

  • Max Rate of Temperature Change: 3°C per minute
    •

  • Do not expose to pressure above 1 atmosphere
    •























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    Description CF800 Zero-Length Glass Viewport



                    Flange Size 8



                    View Diameter 5.354



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
