REPRESENTATIVE IMAGE

Attributes

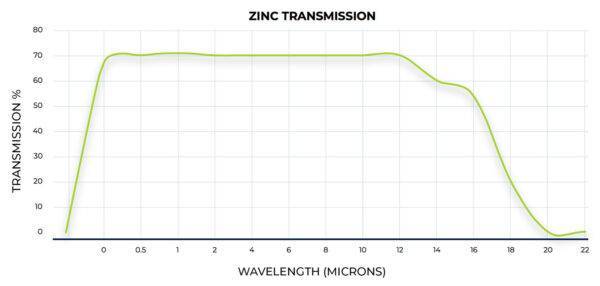

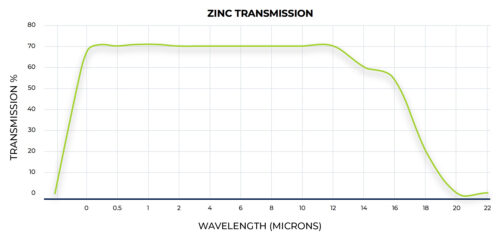

DescriptionCF275 Zinc Selenide (ZnSe) Viewport w/ Broadband AR Coating @ 8-12 microns
Flange Size2.75

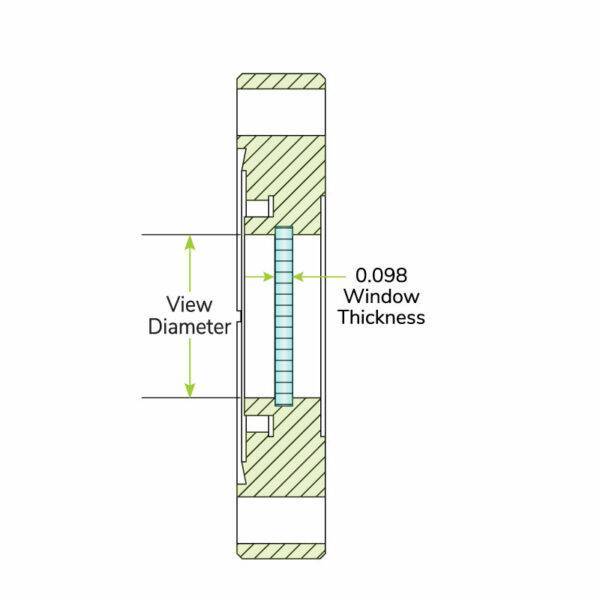

View Diameter0.9
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF275-ZLVP-ZNSE-BBAR-0.90

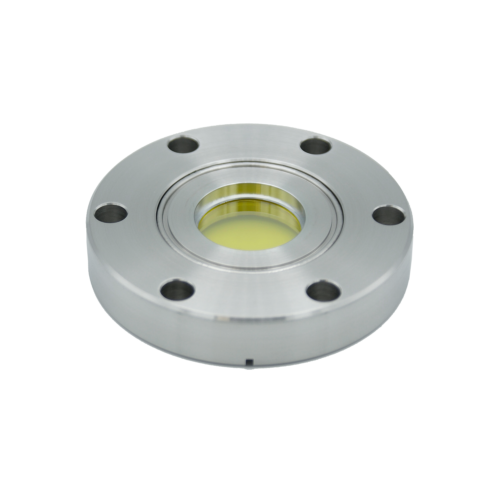

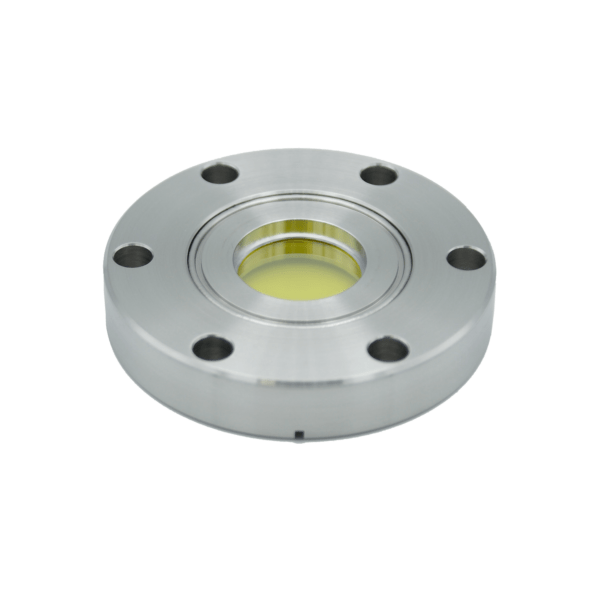

ZnSe Viewport with 2.75 in. (DN 40) ConFlat Flange – Broadband AR Coating

Part ID: 9118061
$950.00
1 in stock (can be backordered)


Description
  • Zinc selenide (ZnSe) viewport
  • UHV rated vacuum optics
  • 0.90″ view diameter
  • 2.75″ ConFlat flange
  • Vacuum-optics w/ zinc selenide window
  • Bakeable to 200°C
  • Stainless steel housing and flange
  • UHV compatible
Specifications
  • Flange material: 304 stainless steel
  • Window material: Zinc selenide
  • TWD < 1λ @ 632nm (peak to valley)
  • Parallelism: < 3 arc minutes
  • Surface finish: 40/20 scratch-dig
  • Thermal range: -100°C to 200°C
  • Bake-out ramp rate: 20°C per minute
  • Leak rate < 1 X 10-9 atm-cc/sec He

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
DescriptionCF275 Zinc Selenide (ZnSe) Viewport w/ Broadband AR Coating @ 8-12 microns
Flange Size2.75
View Diameter0.9
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
