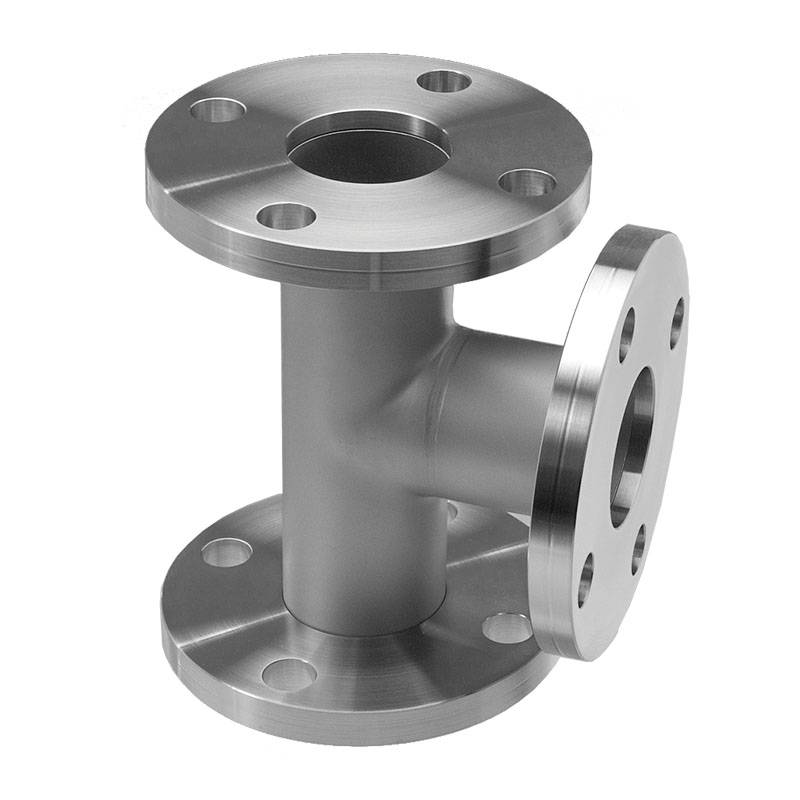

ASA Tee - Rotatable Flanges
Features
- Pulled ports for optimum vacuum performance
- One fixed and one rotatable flange per axis
- O-ring groove available
- ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
- ASA100: $ 20.00
- ASA150: $ 20.00
- ASA200: $ 20.00
- ASA300: $ 35.00
- ASA400: $ 35.00
- ASA600: $ 50.00
- ASA800: $ 55.00
- ASA1000: $ 60.00
- ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
Specifications
- Flange Material: 304L Stainless Steel
- Fitting Material: 304 Stainless Steel
*Dimensions are in inches unless otherwise specified
Part ID | Reference Number | A | Tube O.D. | Flange O.D. | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Part ID | 6000573 | Reference Number | ASA100-150-TEE-2.64 | A | 2.5 | Tube O.D. | 1.5 | Flange O.D. | 4.25 | 3D CAD | Login | Drawing | Login | Unit Price | $660.45 | Contact | |
Part ID | 6000576 | Reference Number | ASA150-200-TEE-3.25 | A | 3.25 | Tube O.D. | 2 | Flange O.D. | 5 | 3D CAD | Login | Drawing | Login | Unit Price | $700.35 | Contact | |
Part ID | 6000577 | Reference Number | ASA150-250-TEE-3.25 | A | 3.25 | Tube O.D. | 2.5 | Flange O.D. | 5 | 3D CAD | Login | Drawing | Login | Unit Price | $741.30 | Contact | |
Part ID | 6000580 | Reference Number | ASA200-300-TEE-3.50 | A | 3.5 | Tube O.D. | 3 | Flange O.D. | 6 | 3D CAD | Login | Drawing | Login | Unit Price | $1,093.68 | Contact | |
Part ID | 6000582 | Reference Number | ASA300-400-TEE-5.12 | A | 5.12 | Tube O.D. | 4 | Flange O.D. | 7.5 | 3D CAD | Login | Drawing | Login | Unit Price | $1,177.90 | Contact | |
Part ID | 6000583 | Reference Number | ASA400-400-TEE-5.12 | A | 5.12 | Tube O.D. | 4 | Flange O.D. | 9 | 3D CAD | Login | Drawing | Login | Unit Price | $1,185.32 | Contact | |
Part ID | 6000584 | Reference Number | ASA400-600-TEE-5.12 | A | 5.25 | Tube O.D. | 6 | Flange O.D. | 9 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | Contact | |
Part ID | 6000585 | Reference Number | ASA600-600-TEE-6.44 | A | 6.44 | Tube O.D. | 6 | Flange O.D. | 11 | 3D CAD | Login | Drawing | Login | Unit Price | $1,665.51 | Contact | |
Part ID | 6000586 | Reference Number | ASA600-800-TEE-7.38 | A | 7.38 | Tube O.D. | 8 | Flange O.D. | 11 | 3D CAD | Login | Drawing | Login | Unit Price | $1,850.91 | Contact | |
Part ID | 6000588 | Reference Number | ASA800-1000-TEE-9.88 | A | 9.88 | Tube O.D. | 10 | Flange O.D. | 13.5 | 3D CAD | Login | Drawing | Login | Unit Price | $2,629.59 | Contact | |
Part ID | 6000587 | Reference Number | ASA800-800-TEE-7.75 | A | 7.75 | Tube O.D. | 8 | Flange O.D. | 13.5 | 3D CAD | Login | Drawing | Login | Unit Price | $2,290.72 | Contact | |
Part ID | 6000589 | Reference Number | ASA1000-1000-TEE-9.88 | A | 9.88 | Tube O.D. | 10 | Flange O.D. | 16 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | Contact |
