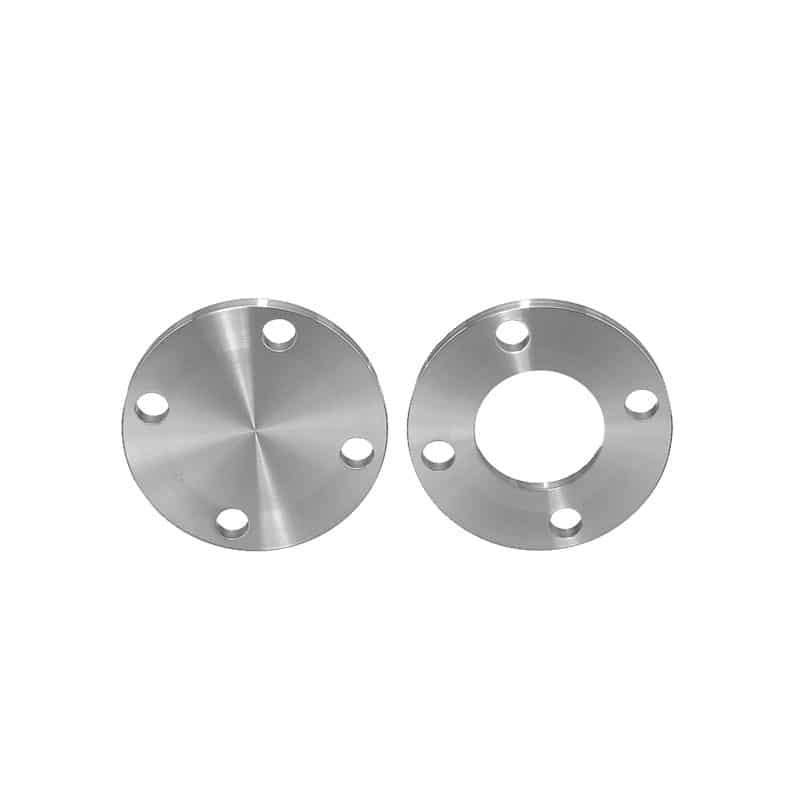

200ASA Flanges (6.00 O.D.)

Materials:

  • Flanges: 304 stainless steel
  • Flexible hose: 321 stainless steel formed bellows

Product Notes:

  • Corrects misaligned connections
  • One fixed and one rotatable flange per fitting
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
      • ASA100: $ 20.00
      • ASA150: $ 20.00
      • ASA200: $ 20.00
      • ASA300: $ 35.00
      • ASA400: $ 35.00
      • ASA600: $ 50.00
      • ASA800: $ 55.00
      • ASA1000: $ 60.00

Options: Contact us for price and availability

*Dimensions are in inches unless otherwise specified

Part IDReference NumberA B C D E F Bolt Hole NO. Bolt Hole Size 3D CADDrawingUnit PriceQty, Add To Cart
Part ID6000007Reference NumberASA200-000A 6B 0.5C BLANKD -E -F 4.75Bolt Hole NO. 4Bolt Hole Size 0.753D CADLoginDrawingLoginUnit Price$126.00
Part ID6000008Reference NumberASA200-200A 6B 0.5C 2.010D 1.875E 0.25F 4.75Bolt Hole NO. 4Bolt Hole Size 0.753D CADLoginDrawingLoginUnit Price$138.00
Part ID6000009Reference NumberASA200-250A 6B 0.5C 2.51D 2.375E 0.25F 4.75Bolt Hole NO. 4Bolt Hole Size 0.753D CADLoginDrawingLoginUnit Price$138.00
Part ID6000010Reference NumberASA200-300A 6B 0.5C 3.010D 2.938E 0.25F 4.75Bolt Hole NO. 4Bolt Hole Size 0.753D CADLoginDrawingLoginUnit Price$138.00
Part ID6000011Reference NumberASA200-350A 6B 0.5C 3.51D 3.438E 0.25F 4.75Bolt Hole NO. 4Bolt Hole Size 0.753D CADLoginDrawingLoginUnit Price$138.00
