• 6000025
  • 6000025

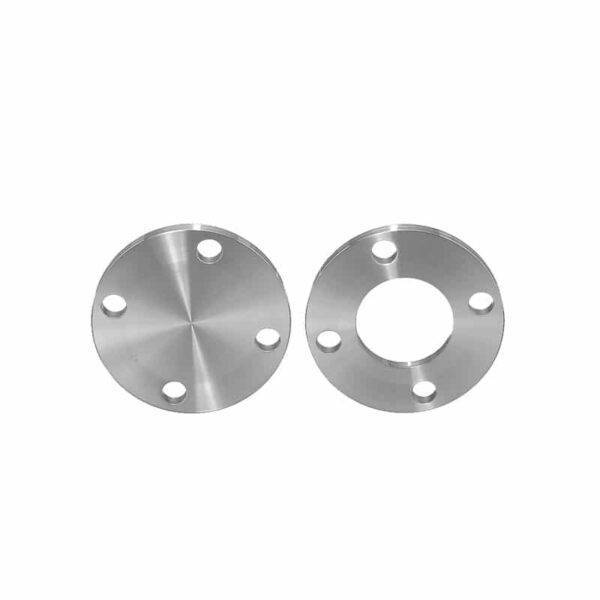

REPRESENTATIVE IMAGE

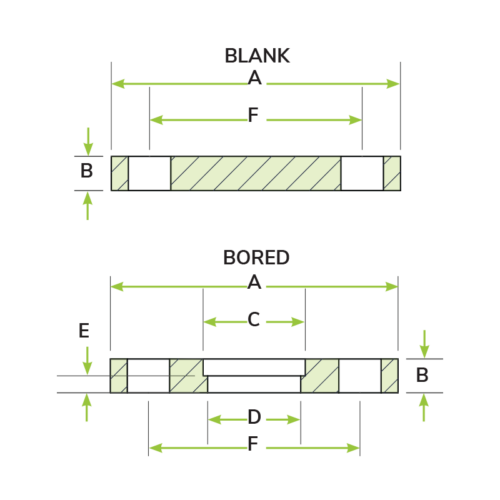

Attributes

A6
B0.5
C3.010
D2.938
E0.25
F4.75
Bolt Hole NO.4
Bolt Hole Size0.75
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA200-300

200ASA Fixed 3 in. ID

Part ID: 6000010
$123.00
Standard Lead Time:
Contact
Available on backorder


These flanges are manufactured with a weld prep and tubing bore for immediate installation on your system with no additional alteration.
Features
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
      • ASA100: $ 20.00
      • ASA150: $ 20.00
      • ASA200: $ 20.00
      • ASA300: $ 35.00
      • ASA400: $ 35.00
      • ASA600: $ 50.00
      • ASA800: $ 55.00
      • ASA1000: $ 60.00
 Specifications
  • Materials:
  •  304L Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A6
B0.5
C3.010
D2.938
E0.25
F4.75
Bolt Hole NO.4
Bolt Hole Size0.75
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
