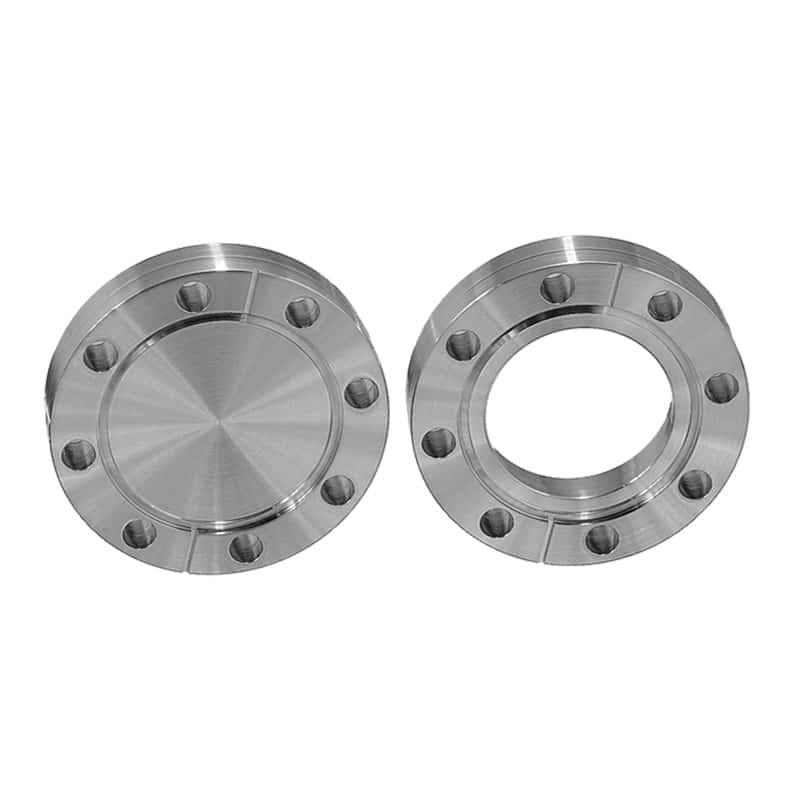

CF450 (4.50 O.D.) Fixed Flanges
4.50 inch outer diameter ConFlat non-rotatable flanges ideal for UHV applications.
Materials:
- 304L stainless steel
Product Notes:
- Designed to fit standard inch tubing O.D.’s
- Self-aligning
- Internal weld
- Sexless flanges
- Tapped and clearance (through-holes) bolt holes available
- Blank flanges close unused ports or custom modify
- Interchangeable with other ConFlat style flanges
- Adapters to other flange systems available
- Vacuum rated: UHV (approx. 1×10-13 Torr)
- Temperature range: -200°C up to 450°C
- Leak rating < 1×10-9 std. cc/s helium
Options: Contact us for price and availability
- Metric tapped bolt holes
- Alternative materials: 316L stainless steel, aluminum, etc.
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | A | B | C | D | E | F | Thrd | Flange Style | Bolt Hole Style | Bolt Hole Number | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 5000100 | Reference Number | CF450-000 | A | 4.47 | B | - | C | - | D | 0.68 | E | - | F | 3.63 | Thrd | 0.332 | Flange Style | Fixed | Bolt Hole Style | Clearance | Bolt Hole Number | 8 | 3D CAD | Login | Drawing | Login | Unit Price | $50.80 | 35 | |
| Part ID | 5000101 | Reference Number | CF450-150 | A | 4.47 | B | 1.38 | C | 1.51 | D | 0.68 | E | 0.38 | F | 3.63 | Thrd | 0.332 | Flange Style | Fixed | Bolt Hole Style | Clearance | Bolt Hole Number | 8 | 3D CAD | Login | Drawing | Login | Unit Price | $60.33 | 2 | |
| Part ID | 5000102 | Reference Number | CF450-200 | A | 4.47 | B | 1.94 | C | 2.01 | D | 0.68 | E | 0.38 | F | 3.63 | Thrd | 0.332 | Flange Style | Fixed | Bolt Hole Style | Clearance | Bolt Hole Number | 8 | 3D CAD | Login | Drawing | Login | Unit Price | $60.33 | 1 | |
| Part ID | 5000103 | Reference Number | CF450-250 | A | 4.47 | B | 2.44 | C | 2.51 | D | 0.68 | E | 0.38 | F | 3.63 | Thrd | 0.332 | Flange Style | Fixed | Bolt Hole Style | Clearance | Bolt Hole Number | 8 | 3D CAD | Login | Drawing | Login | Unit Price | $50.80 | 36 | |
| Part ID | 5000104 | Reference Number | CF450T-000 | A | 4.47 | B | - | C | - | D | 0.68 | E | - | F | 3.63 | Thrd | 5/16-24 | Flange Style | Fixed | Bolt Hole Style | Tapped | Bolt Hole Number | 8 | 3D CAD | Login | Drawing | Login | Unit Price | $57.20 | Contact | |
| Part ID | 5000105 | Reference Number | CF450T-150 | A | 4.47 | B | 1.38 | C | 1.51 | D | 0.68 | E | 0.38 | F | 3.63 | Thrd | 5/16-24 | Flange Style | Fixed | Bolt Hole Style | Tapped | Bolt Hole Number | 8 | 3D CAD | Login | Drawing | Login | Unit Price | $67.93 | 1 | |
| Part ID | 5000106 | Reference Number | CF450T-200 | A | 4.47 | B | 1.94 | C | 2.01 | D | 0.68 | E | 0.38 | F | 3.63 | Thrd | 5/16-24 | Flange Style | Fixed | Bolt Hole Style | Tapped | Bolt Hole Number | 8 | 3D CAD | Login | Drawing | Login | Unit Price | $67.93 | 2 | |
| Part ID | 5000107 | Reference Number | CF450T-250 | A | 4.47 | B | 2.44 | C | 2.51 | D | 0.68 | E | 0.38 | F | 3.63 | Thrd | 5/16-24 | Flange Style | Fixed | Bolt Hole Style | Tapped | Bolt Hole Number | 8 | 3D CAD | Login | Drawing | Login | Unit Price | $57.20 | Contact |
