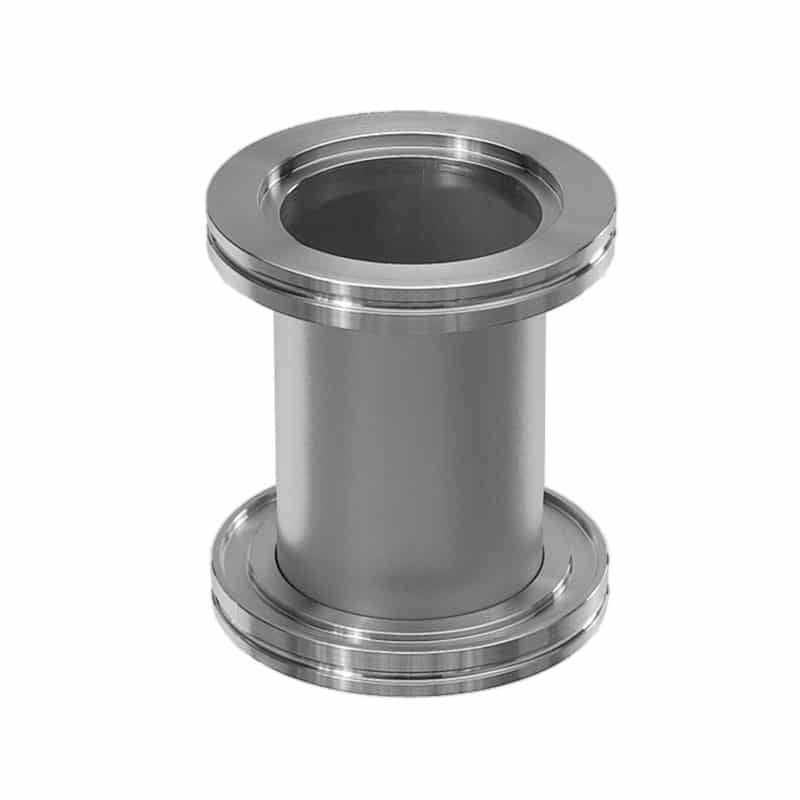

ISO-LF Nipple

Nipples are used to create a weld free straight connection within a vacuum system. They are also used as straight adapters between different tubing sizes or flange types.



Features

  • High Vacuum Rated to 1×10-8 Torr
  • Bakeable to 200°C
  • Compatible with all ISO standard vacuum flanges and fittings
  • Quick sealing and disassembly



Materials

  • Standard: 304 Stainless Steel
  • Alternative: 6061 Aluminum (Contact us for price and delivery)



Options (Contact us for price and delivery)

  • Custom lengths
  • Custom flange combinations
  • ISO-QF large flange sizes
  • ISO-LFB flanges
    • Tapped bolt holes

*Dimensions are in inches unless otherwise specified

Part IDReference NumberA 3D CADDrawingUnit PriceQty, Add To Cart
Part ID4500207Reference NumberLF63-250-N-4.18A 4.183D CADLoginDrawingLoginUnit Price$200.00
Part ID4500208Reference NumberLF63-250-N-6.92A 6.923D CADLoginDrawingLoginUnit Price$210.00
Part ID4500209Reference NumberLF80-300-N-4.18A 4.183D CADLoginDrawingLoginUnit Price$240.00
Part ID4500210Reference NumberLF80-300-N-7.72A 7.723D CADLoginDrawingLoginUnit Price$250.00
Part ID4500211Reference NumberLF100-400-N-4.18A 4.183D CADLoginDrawingLoginUnit Price$270.00
Part ID4500212Reference NumberLF100-400-N-8.50A 8.53D CADLoginDrawingLoginUnit Price$280.00
Part ID4500213Reference NumberLF160-600-N-4.18A 4.183D CADLoginDrawingLoginUnit Price$395.00
Part ID4500214Reference NumberLF160-600-N-10.86A 10.863D CADLoginDrawingLoginUnit Price$415.00
Part ID4500215Reference NumberLF200-800-N-4.18A 4.183D CADLoginDrawingLoginUnit Price$560.00
Part ID4500216Reference NumberLF200-800-N-13.22A 13.223D CADLoginDrawingLoginUnit Price$615.00
Part ID4500217Reference NumberLF250-1000-N-4.18A 4.183D CADLoginDrawingLoginUnit Price$715.00
Part ID4500218Reference NumberLF250-1000-N-16.38A 16.383D CADLoginDrawingLoginUnit Price$760.00
Part ID4500219Reference NumberLF320-1200-N-19.76A 19.763D CADLoginDrawingLoginUnit PriceRequest a Quote
Part ID4500220Reference NumberLF400-1600-N-20.76A 20.763D CADLoginDrawingLoginUnit PriceRequest a Quote
Part ID4500221Reference NumberLF500-2000-N-21.76A 21.763D CADLoginDrawingLoginUnit PriceRequest a Quote
