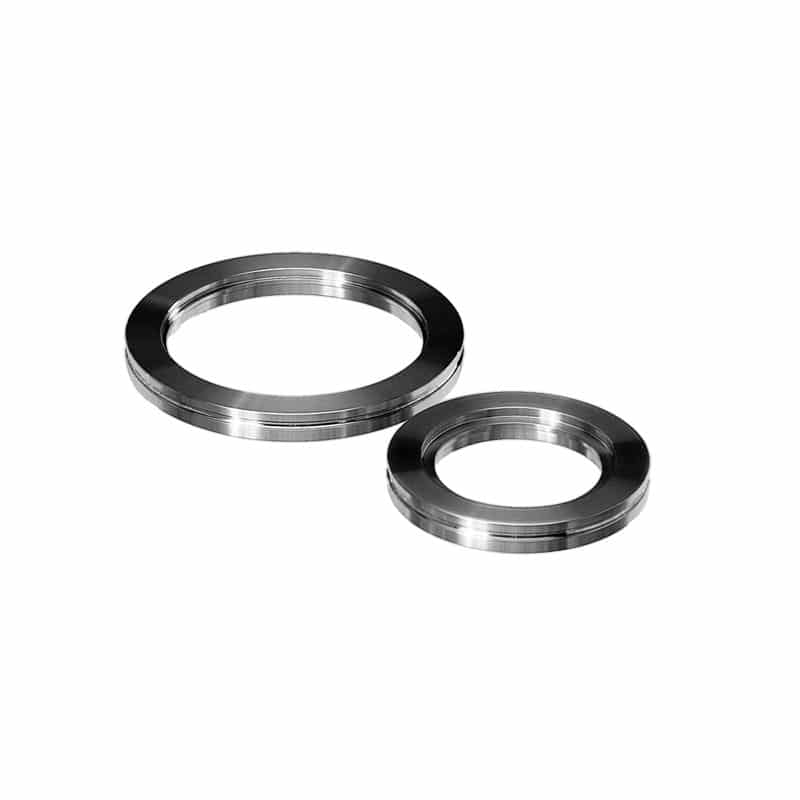

ISO-LF Socket Weld Flange
Features
- High Vacuum Rated to 1×10-8 Torr
- Bakeable to 200°C
- Compatible with all ISO standard vacuum flanges and fittings
- Quick Sealing and disassembly
- Internal weld
- Self-aligning
- Designed to fit standard inch tubing O.D.’s
- To simplify aluminum welding, ANCORP also offers an aluminum ISO-LF stub weld flange
Specifications
- Standard Material:
- 304L Stainless Steel
- 316 Stainless Steel
- 6061 Aluminum
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | A | B | C | D | Material | Tube O.D. | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 4500069 | Reference Number | LF63-250-SF | A | 2.51 | B | 2.37 | C | 3.74 | D | 0.25 | Material | 304L SS | Tube O.D. | 2.5 | 3D CAD | Login | Drawing | Login | Unit Price | $62.00 | 2 Weeks | |
| Part ID | 4503069 | Reference Number | LF63-250-SF-316 | A | 2.51 | B | 2.37 | C | 3.74 | D | 0.25 | Material | 316 SS | Tube O.D. | 2.5 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | 19 | |
| Part ID | 4500078 | Reference Number | LF63-250-SF-AL | A | 2.51 | B | 2.37 | C | 3.74 | D | 0.25 | Material | 6061-T6 Aluminum | Tube O.D. | 2.5 | 3D CAD | Login | Drawing | Login | Unit Price | $47.50 | 4 Weeks | |
| Part ID | 4500070 | Reference Number | LF80-300-SF | A | 3.01 | B | 2.87 | C | 4.33 | D | 0.25 | Material | 304L SS | Tube O.D. | 3 | 3D CAD | Login | Drawing | Login | Unit Price | $73.50 | 157 | |
| Part ID | 4506070 | Reference Number | LF80-300-SF-316 | A | 3.01 | B | 2.87 | C | 4.33 | D | 0.25 | Material | 316 SS | Tube O.D. | 3 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | 2 | |
| Part ID | 4500079 | Reference Number | LF80-300-SF-AL | A | 3.01 | B | 2.87 | C | 4.33 | D | 0.25 | Material | 6061-T6 Aluminum | Tube O.D. | 3 | 3D CAD | Login | Drawing | Login | Unit Price | $60.00 | 12 | |
| Part ID | 4500071 | Reference Number | LF100-400-SF | A | 4.01 | B | 3.87 | C | 5.12 | D | 0.25 | Material | 304L SS | Tube O.D. | 4 | 3D CAD | Login | Drawing | Login | Unit Price | $85.00 | 226 | |
| Part ID | 4506071 | Reference Number | LF100-400-SF-316 | A | 4.01 | B | 3.87 | C | 5.12 | D | 0.25 | Material | 316 SS | Tube O.D. | 4 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | 4 | |
| Part ID | 4500080 | Reference Number | LF100-400-SF-AL | A | 4.02 | B | 3.87 | C | 5.12 | D | 0.25 | Material | 6061-T6 Aluminum | Tube O.D. | 4 | 3D CAD | Login | Drawing | Login | Unit Price | $66.00 | 4 | |
| Part ID | 4500072 | Reference Number | LF160-600-SF | A | 6.02 | B | 5.83 | C | 7.09 | D | 0.25 | Material | 304L SS | Tube O.D. | 6 | 3D CAD | Login | Drawing | Login | Unit Price | $118.50 | 57 | |
| Part ID | 4500081 | Reference Number | LF160-600-SF-AL | A | 6.02 | B | 5.83 | C | 7.09 | D | 0.25 | Material | 6061-T6 Aluminum | Tube O.D. | 6 | 3D CAD | Login | Drawing | Login | Unit Price | $110.00 | 4 Weeks | |
| Part ID | 4500073 | Reference Number | LF200-800-SF | A | 8.02 | B | 7.76 | C | 9.45 | D | 0.25 | Material | 304L SS | Tube O.D. | 8 | 3D CAD | Login | Drawing | Login | Unit Price | $185.00 | 39 | |
| Part ID | 4500082 | Reference Number | LF200-800-SF-AL | A | 8.02 | B | 7.76 | C | 9.45 | D | 0.25 | Material | 6061-T6 Aluminum | Tube O.D. | 8 | 3D CAD | Login | Drawing | Login | Unit Price | $165.00 | 3 | |
| Part ID | 4500074 | Reference Number | LF250-1000-SF | A | 10.02 | B | 9.75 | C | 11.42 | D | 0.25 | Material | 304L SS | Tube O.D. | 10 | 3D CAD | Login | Drawing | Login | Unit Price | $295.00 | 15 | |
| Part ID | 4500083 | Reference Number | LF250-1000-SF-AL | A | 10.03 | B | 9.76 | C | 11.42 | D | 0.25 | Material | 6061-T6 Aluminum | Tube O.D. | 10 | 3D CAD | Login | Drawing | Login | Unit Price | $192.50 | 4 Weeks | |
| Part ID | 4500181 | Reference Number | LF320-1200-SF | A | 12.03 | B | 11.88 | C | 14.57 | D | 0.38 | Material | 304L SS | Tube O.D. | 12 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | Contact | |
| Part ID | 4500186 | Reference Number | LF320-1200-SF-AL | A | 12.03 | B | 11.88 | C | 14.57 | D | 0.38 | Material | 6061-T6 Aluminum | Tube O.D. | 12 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | Contact | |
| Part ID | 4500075 | Reference Number | LF320-1275-SF | A | 12.77 | B | 12.42 | C | 14.57 | D | 0.38 | Material | 304L SS | Tube O.D. | 12.75 | 3D CAD | Login | Drawing | Login | Unit Price | $585.00 | 4 | |
| Part ID | 4500084 | Reference Number | LF320-1275-SF-AL | A | 12.77 | B | 12.42 | C | 14.57 | D | 0.38 | Material | 6061-T6 Aluminum | Tube O.D. | 12.75 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | 5 | |
| Part ID | 4500076 | Reference Number | LF400-1600-SF | A | 16.03 | B | 15.62 | C | 17.72 | D | 0.38 | Material | 304L SS | Tube O.D. | 16 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | 6 Weeks | |
| Part ID | 4500085 | Reference Number | LF400-1600-SF-AL | A | 16.03 | B | 15.62 | C | 17.72 | D | 0.38 | Material | 6061-T6 Aluminum | Tube O.D. | 16 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | 8 Weeks | |
| Part ID | 4500077 | Reference Number | LF500-2000-SF | A | 20.04 | B | 19.62 | C | 21.65 | D | 0.38 | Material | 304L SS | Tube O.D. | 20 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | 6 Weeks | |
| Part ID | 4500086 | Reference Number | LF500-2000-SF-AL | A | 20.03 | B | 19.62 | C | 21.65 | D | 0.38 | Material | 6061-T6 Aluminum | Tube O.D. | 20 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | 8 Weeks |
