• 601312
  • 601312

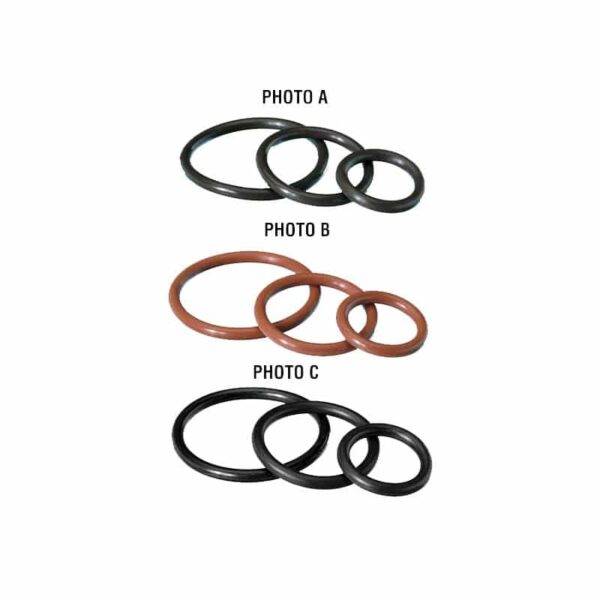

REPRESENTATIVE IMAGE

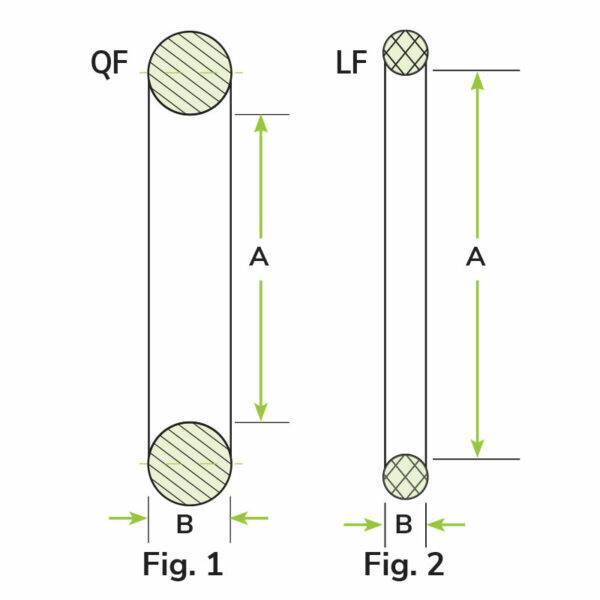

Attributes

A 12.48
B 0.28
Drawing C
O-ring std # 2-454
Seal Material Buna-N
Use with Flange LF320
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

2-454-OB

BUNA-N Replacement Elastomer O-ring (12 1/2 in.) for LF320 Flange

$13.50

Available on backorder

Part ID: 0601454











Features






  • Replacement seals for ISO centering rings
    •

  • Buna-N, Silicone, or FKM
    •









 Buna-N






  • Temperature Limits:
    •



    • Low: -20°C
      •

    • Sustained High: 80°C
      •

    • Intermittent Use: 100°C
      •











 Silicone






  • Temperature Limits:
    •



    • Low: -50°C
      •

    • Sustained High: 150°C
      •

    • Intermittent Use: 200°C
      •











 FKM






  • Temperature Limits:
    •



    • Low: -20°C
      •

    • Sustained High: 150°C
      •

    • Intermittent Use: 200°C
      •





























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 12.48



                    B 0.28



                    Drawing C



                    O-ring std # 2-454



                    Seal Material Buna-N



                    Use with Flange LF320



                    3D CADLogin







                    DrawingLogin

















All dimensions are in inches unless otherwise specified.
