Attributes

A 4
B 2
C -
D -
Type Single Tube
Flange QF40
Figure 1
Connection 0.25 in. Tube Ends
3D CADLogin
DrawingLogin

QF40XTE-025-FTST-6.00

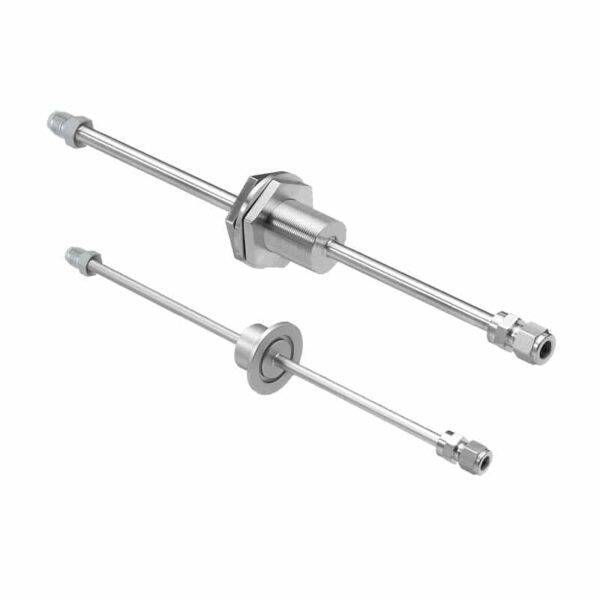

Gas Single QF40 Feedthrough Tube End

$0.00

Available on backorder

Part ID: 2001006







Fluid and gas feedthroughs transmit fluid or gasses into high and ultra-high vacuum chambers. These feedthroughs are available with multiple tubing and flange connection options.



Features


  • Flanges and tubing manufactured from 304 stainless steel
    •
  • Fittings (VCR®, Swagelok®) made of 316 stainless steel
    •
  • Max. temperature:

    • CF flanged feedthroughs: 450°C
      •
    • ISO-QF (KF) and baseplate feedthroughs: 150°C (200°C intermittent)
      •

    •
  • Vacuum rating:

    • CF flanged feedthroughs: UHV 1×10-13 Torr
      •
    • ISO-QF (KF) and baseplate feedthroughs: HV 1×10-8 Torr
      •

    •
