REPRESENTATIVE IMAGE

Attributes

A6
B3
C-
D-
TypeSingle Tube
FlangeQF40

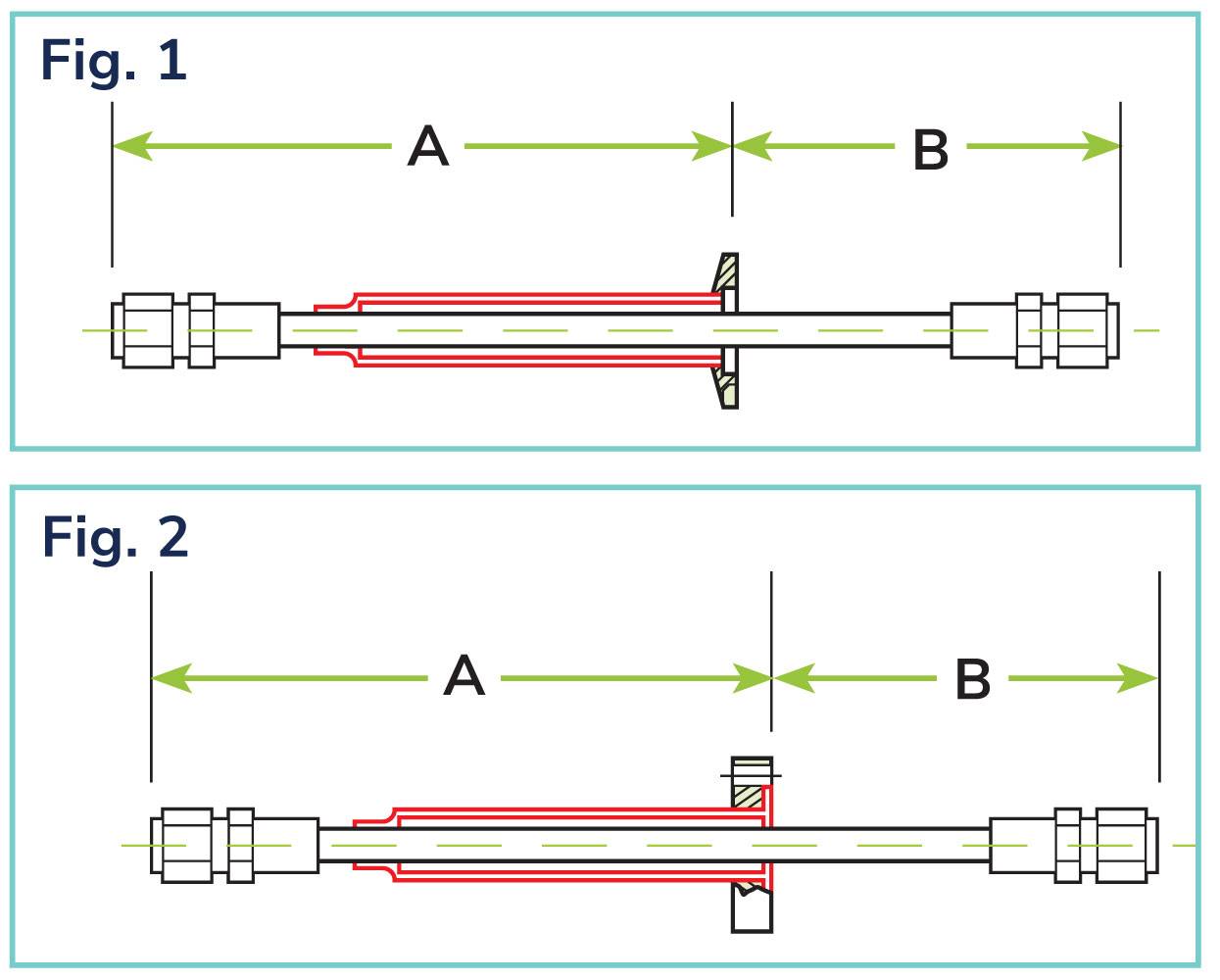

Figure1
Connection0.25 in. Swagelok
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF40XSWG25-FTCS-9.00

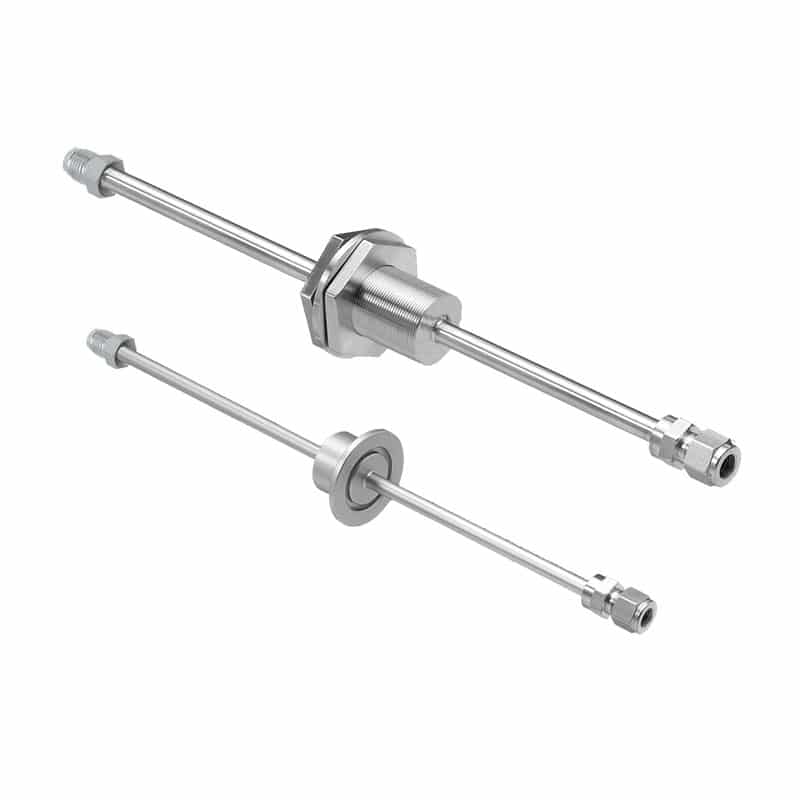

Cryogenic QF40 Feedthrough Swagelok

Part ID: 2001052
$0.00
Standard Lead Time:
Contact
Available on backorder


Cryogenic fluid feedthroughs transmit cryogenic cooling agents into high and ultra-high vacuum chambers. These feedthroughs are available with multiple tubing and flange connection options.

Features
  • Flanges and tubing manufactured from 304 stainless steel
  • Fittings (VCR®, Swagelok®) made of 316 stainless steel
  • Max. temperature:
    • CF flanged feedthroughs: 450°C
    • ISO-QF (KF) and baseplate feedthroughs: 150°C (200°C intermittent)
  • Vacuum rating:
    • CF flanged feedthroughs: UHV 1×10-13 Torr
    • ISO-QF (KF) and baseplate feedthroughs: HV 1×10-8 Torr

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A6
B3
C-
D-
TypeSingle Tube
FlangeQF40
Figure1
Connection0.25 in. Swagelok
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
