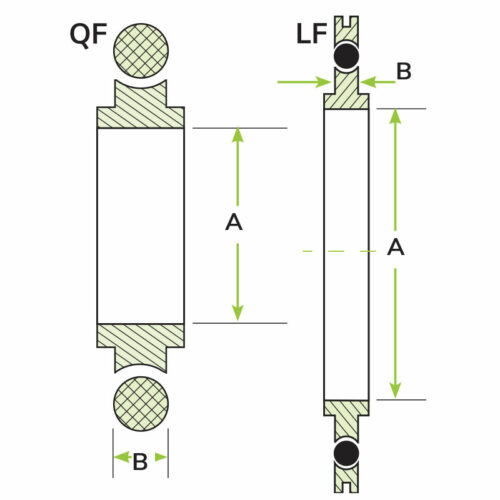

Attributes

A 1.97
B 0.21
Material 316 SST
Seal Material Fluorocarbon (FKM)
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF50-200-CTR-VT

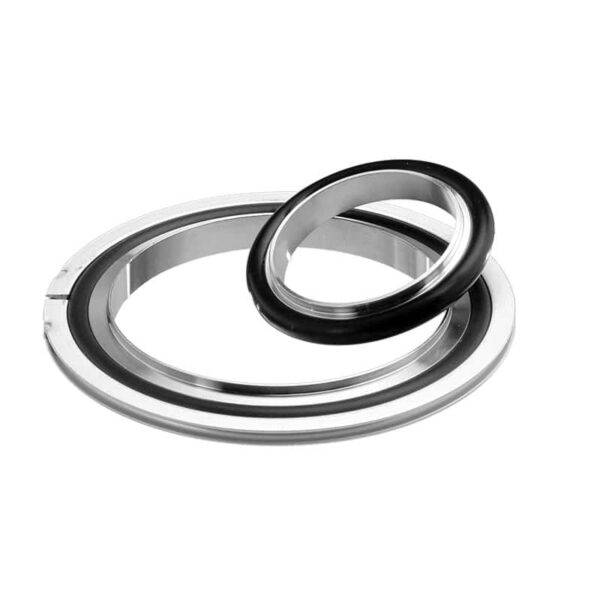

QF50 Centering Ring Assembly SS/FKM

Part ID: 4000008


















$19.00


























Need more than what you see in stock? Let us know and we can likely assemble in less than a day.




















			Standard Lead Time:

2 Days
















































Available on backorder


















































Centering Ring Assemblies include a supportive inner stainless steel ring and an elastomer outer ring (o-ring) which is compressed between the ISO flanges to create a vacuum tight seal.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Reusable
    •

  • Quick sealing and disassembly
    •

  •  Metal centering ring aligns flanges during seal assembly and provides support for the elastomer sealing ring
    •









Specifications






  • Materials:
    •



    • Centering Ring: Stainless Steel
      •

    • O-Ring: Buna-N, Fluorocarbon (FKM) or Silicone
      •

    • Spacer Ring (LF sizes only): Aluminum
      •
