• 4000054
  • 4000054

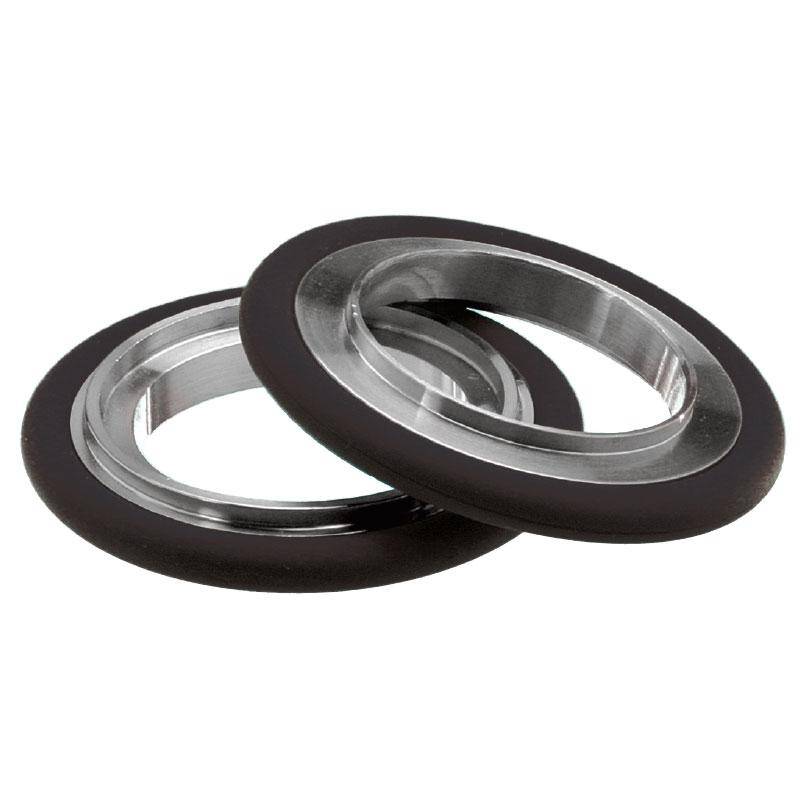

REPRESENTATIVE IMAGE

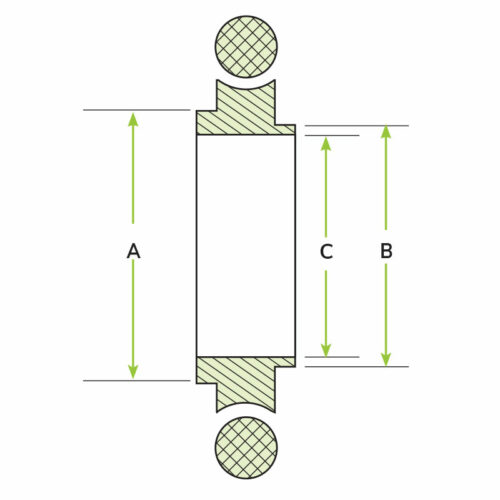

Attributes

A1.02
B0.87
C0.81
Material304 SST
Seal MaterialFKM
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF20/25-ACR-VT

QF20/25 Stainless Steel Centering Ring Assembly

Part ID: 4000055
$12.00
Need more than what you see in stock? Let us know and we can likely assemble in less than a day.
Standard Lead Time:
4 Weeks
Available on backorder


Adaptive centering ring assembles allow you to adapt directly from the rarely used ISO-QF sizes (QF10, QF20, and QF32) to commonly available ISO-QF sizes (QF16, QF25, QF40). The adapted assembly can be fastened with a standard clamp that corresponds with the larger of the two sizes.
Features
  • High Vacuum Rated to 1×10-8 Torr
  •  Compatible with all ISO standard vacuum flanges and fittings
  •  Reusable
  • Quick sealing and disassembly
  •  Metal centering ring aligns flanges during seal assembly and provides support for the elastomer sealing ring
  •  Replaceable O-ring
Specifications
  • Materials:
      •  Centering Ring: 316 Stainless steel (Aluminum Available Upon Request)
    • O-Ring:
        •  Standard: PTFE
        •  Alternative: Buna or Silicone

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A1.02
B0.87
C0.81
Material304 SST
Seal MaterialFKM
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
