Attributes

A 1.25
B 1.19
C 0.35
Max PSIG 100
3D CADLogin
DrawingLogin

QF16-075-OPR

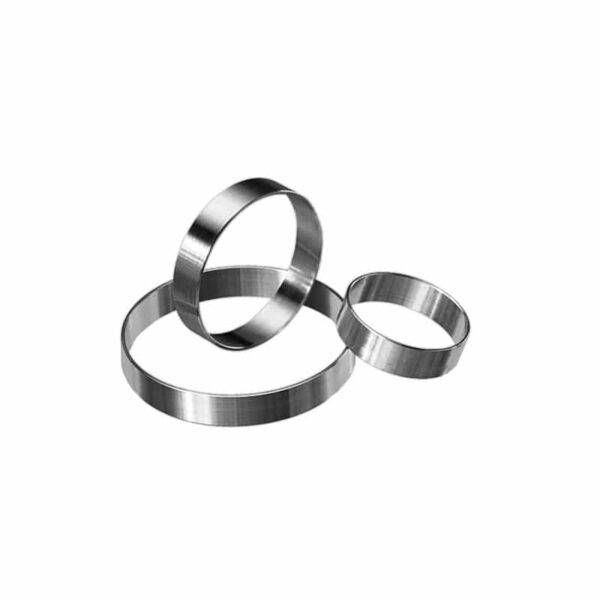

QF16 Over Pressure Rings

$8.50

Available on backorder

Part ID: 4000073

This centering ring accessory creates a barrier on the outer diameter of the elastomer sealing ring to prevent “blow out” due to the presence of pressures greater than 1 standard atmosphere within a vacuum system. A centering ring assembly with an over pressure ring can withstand up to 100psi of pressure depending on the flange you are using.



Features

  • High Vacuum Rated to 1×10-8 Torr
  • Compatible with all ISO standard vacuum flanges
  • Reusable
  • Quick sealing and disassembly



Materials

  • 304 Stainless steel



Product Notes

  • Retains o-ring if your system is exposed to a burst of pressure
