• 4000073
  • 4000073

REPRESENTATIVE IMAGE

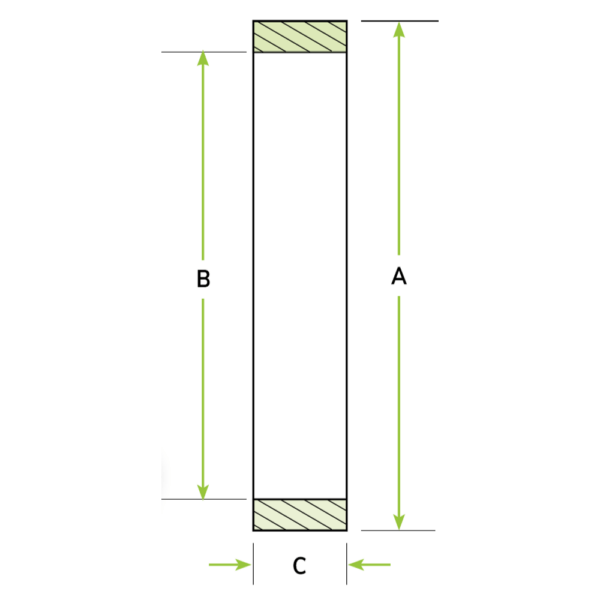

Attributes

A 1.66
B 1.58
C 0.35
Max PSIG 100
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF25-100-OPR

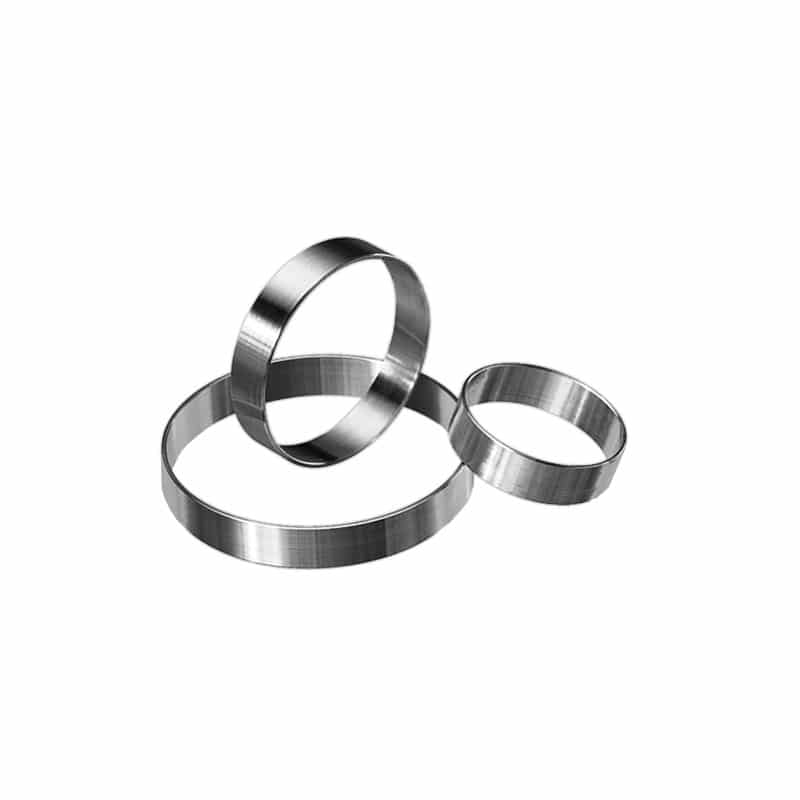

QF25 Over Pressure Rings

$9.60

3 in stock (can be backordered)

Part ID: 4000074









This centering ring accessory creates a barrier on the outer diameter of the elastomer sealing ring to prevent “blow out” due to the presence of pressures greater than 1 standard atmosphere within a vacuum system. A centering ring assembly with an over pressure ring can withstand up to 100psi of pressure depending on the flange you are using.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Reusable
    •

  • Quick sealing and disassembly
    •

  • Retains o-ring if your system is exposed to a burst of pressure
    •









Specifications






  • Materials:
    •





  • 304L Stainless Steel
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 1.66



                    B 1.58



                    C 0.35



                    Max PSIG 100



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
