REPRESENTATIVE IMAGE

Attributes

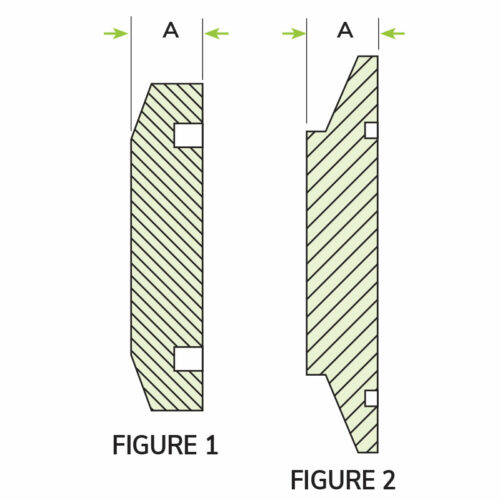

A 0.2
Figure 1
Material 6061-T6 Aluminum
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF40-000-AL

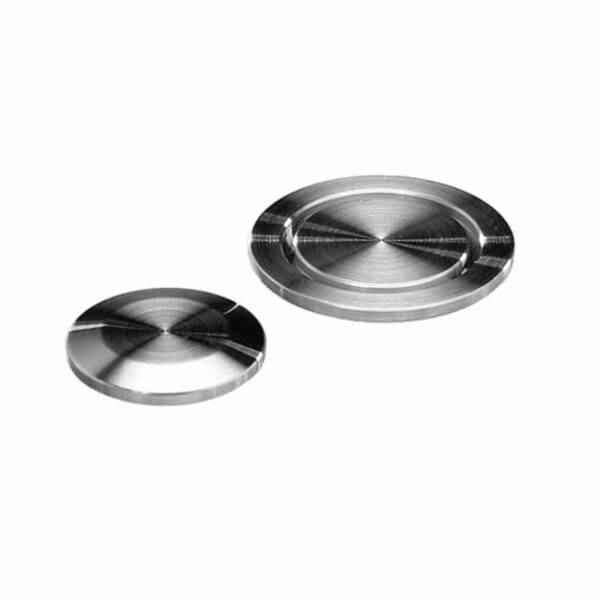

ISO-QF40 Blank Flange, Aluminum

$11.30

Available on backorder

Part ID: 4000167









Blank flanges are manufactured with no weld prep and no tubing bore. They are commonly used to close unused ports or they are altered by customers with their own custom machining capability for a special use.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • Quick sealing and disassembly
    •

  • Designed to fit standard inch tubing O.D.’s
    •

  • Dish head blank flanges have a stainless steel disk
    •

  • Close off unused ports
    •

  • Good choice for custom modification
    •









Specifications






  • Standard Material:
    •



    • 304L Stainless Steel
      •

    • 6061 Aluminum
      •



  • Alternative: 316 Stainless Steel
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 0.2



                    Figure 1



                    Material 6061-T6 Aluminum



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
