REPRESENTATIVE IMAGE

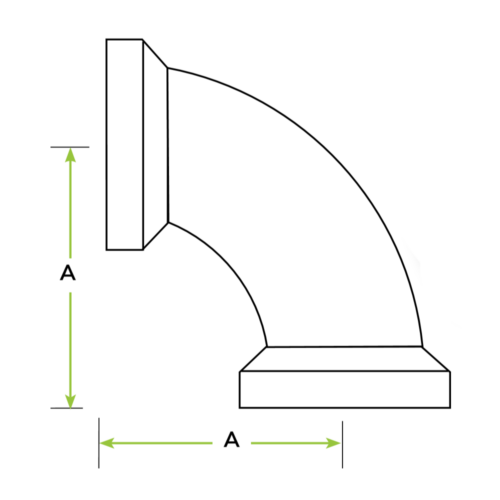

Attributes

A 2.56
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF40-150-E90-2.56

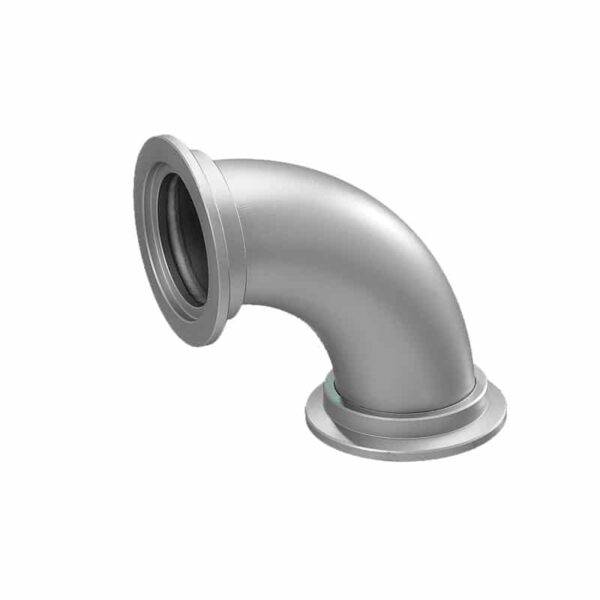

ISO-QF40 90° Elbow Radius

$61.00

Available on backorder

Part ID: 4000452









Elbows are manufactured with a flange on each end of a curved section of tubing. Elbows accomodate turns or alignment considerations for vacuum system design.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Bakeable to 200°C
    •

  • Quick sealing and disassembly
    •

  • Radius elbow design
    •









Specifications






  •  Materials:
    •





  •  Flanges: 304L Stainless Steel
    •

  •  Fitting: 304 Stainless Steel
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 2.56



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
