• 4000490
  • 4000490

REPRESENTATIVE IMAGE

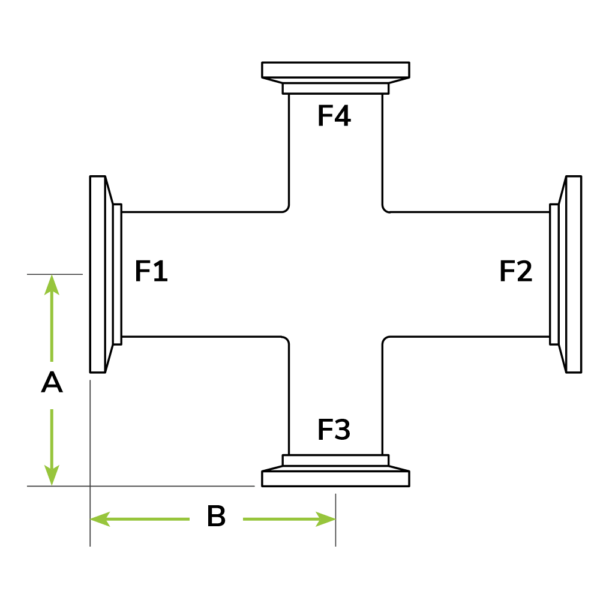

Attributes

A 1.95
B 2.56
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF40XQF16-150X075-R4X-2.56X1.95

ISO-QF40/16 (KF) Reducer Cross

$178.00

Available on backorder

Part ID: 4000492









Crosses accommodate junctions or alignment considerations for a vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Bakeable to 200°C
    •

  • Quick sealing and disassembly
    •

  • Pulled ports for optimal vacuum performance
    •

  • Reducing intersection for different ISO-QF flange sizes
    •









Specifications






  •  Materials:
    •





  •  Flanges: 304L Stainless Steel
    •

  •  Fitting: 304 Stainless Steel
    •

  •  Alternative: 6061 Aluminum
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 1.95



                    B 2.56



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
