QF100-400-SF

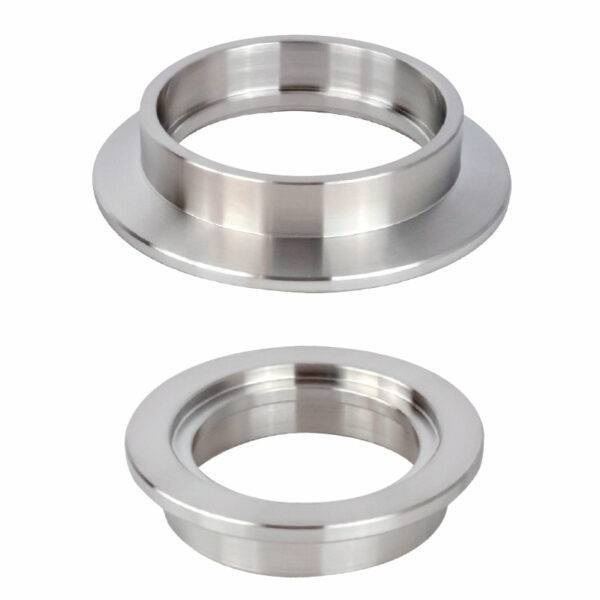

ISO-QF10 Socket Weld Flange, 4 in. Tube

Part ID: 4001083


















$125.00





































			Standard Lead Time:

Contact
















































Available on backorder


















































Socket Weld Flanges are designed with a tube counterbore for internal welds.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • Quick sealing and disassembly
    •

  • Internal weld
    •

  • Self-aligning
    •

  • Designed to fit standard inch tubing O.D.’s
    •

  • QF63-QF200 uses LF Centering Rings
    •









Specifications






  • Standard Material:



    • 304L Stainless Steel
      •

    • 316 Stainless Steel
      •



    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4.02



                    B 0.47



                    C 0.25



                    D 4.5



                    E 3.875



                    Figure 2



                    Material 304L SS



                    Tube Size 4



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
