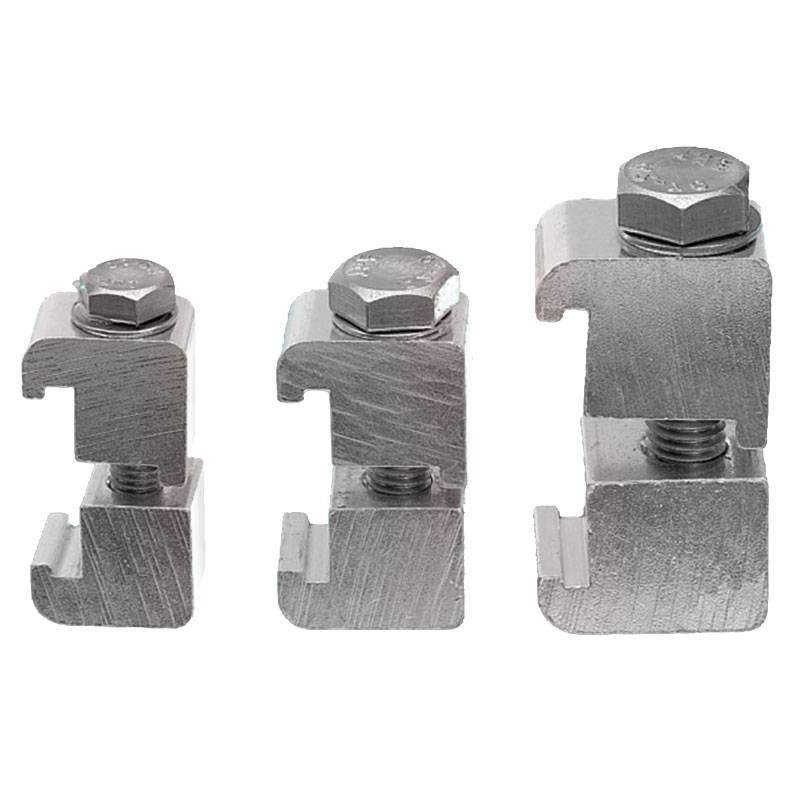

REPRESENTATIVE IMAGE

Attributes

A 1.10
B 2.05
C 0.80
Flange Size 160 / 200 / 250
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF160/250-DCC

LF160/200/250 Double Claw Clamp

$7.50

271 in stock (can be backordered)

Part ID: 4500001









Claw clamps require the use of more than one clamp per flange connection. They require more work per seal assembly, but offer greater strength than the quick clamp if the seal assembly must bear a lateral load. They are traditionally the most popular clamps for ISO sizes LF63 and larger. These clamps are the only clamps capable of sealing sizes LF250 to LF500.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Fastens ISO-LF flanges
    •









Specifications






  • Material
    •



    • Body: Aluminum
      •

    • Hardware (pins, studs and hinges): Stainless Steel
      •





























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 1.10



                    B 2.05



                    C 0.80



                    Flange Size 160 / 200 / 250



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
