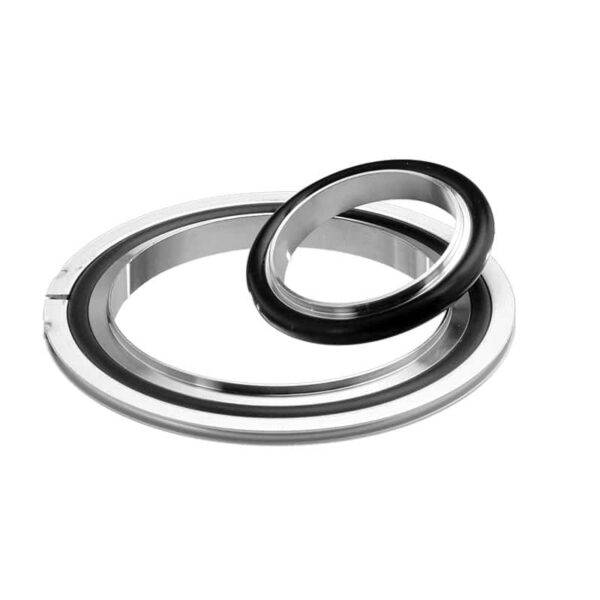

REPRESENTATIVE IMAGE

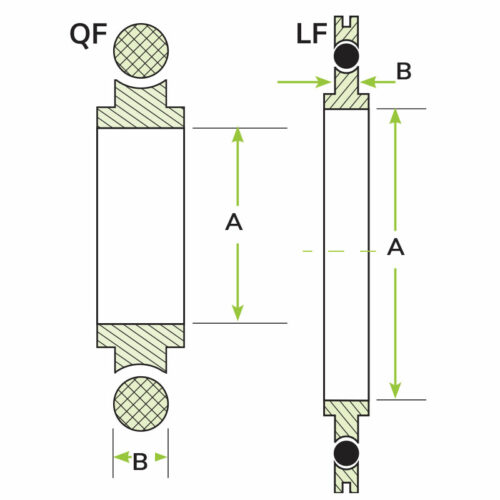

Attributes

A 19.41
B 0.22
Material Aluminum
Seal Material Buna-N
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF500-2000-CTR-AL-BN

LF500 Centering Ring Assembly Aluminum/Buna-N

Part ID: 4500057


















$307.00


























Need more than what you see in stock? Let us know and we can likely assemble in less than a day.




















			Standard Lead Time:

6 Weeks
















































Available on backorder


















































Centering Ring Assemblies include a supportive inner aluminum ring and an elastomer outer ring (o-ring) which is compressed between the ISO flanges to create a vacuum tight seal.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Reusable
    •

  • Quick sealing and disassembly
    •

  •  Metal centering ring aligns flanges during seal assembly and provides support for the elastomer sealing ring
    •









Specifications






  • Materials:
    •



    •  Centering Ring: Aluminum
      •

    • O-Ring: Buna-N, Fluorocarbon (FKM) or Silicone
      •

    • Spacer Ring (LF sizes only): Aluminum
      •
