LF500-2000-CTR-AL-SN

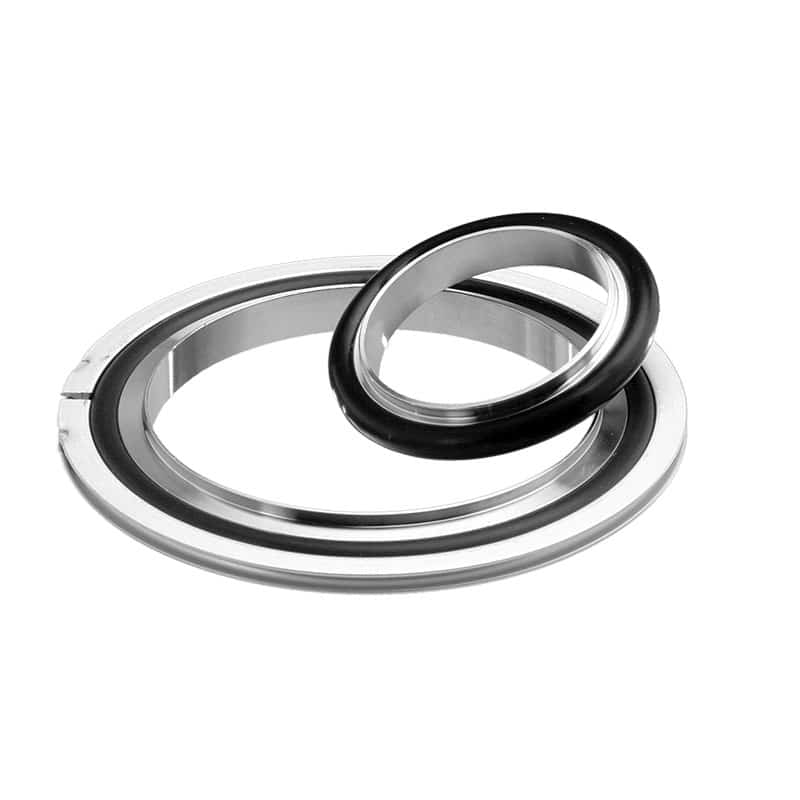

Centering Ring Assemblies include a supportive inner aluminum ring and an elastomer outer ring (o-ring) which is compressed between the ISO flanges to create a vacuum tight seal.

Features

• High Vacuum Rated to 1×10^-8 Torr
• Compatible with all ISO standard vacuum flanges
• Reusable
• Quick sealing and disassembly

Materials

• Centering Ring: Aluminum
• O-Ring: Buna-N, Viton™ or Silicone
• Spacer Ring (LF sizes only): Aluminum

Product Notes

• Metal centering ring aligns flanges during seal assembly and provides support for the elastomer sealing ring
