• 4500110
  • 4500110

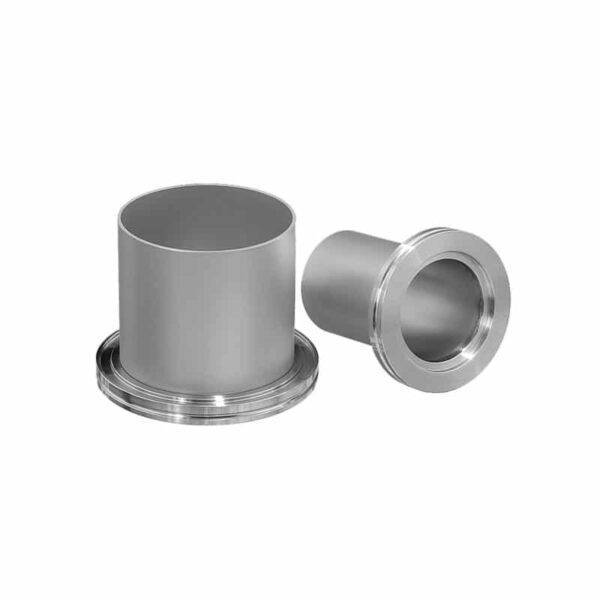

REPRESENTATIVE IMAGE

Attributes

A 2.5
B 3.94
C 3.74
Material 304L SS
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF63-250-HN-3.94

ISO-LF63 Half Nipple 2 1/2 in. ,304L SS

Original price was: $122.00.Current price is: $91.50.

Your Price

2 in stock (can be backordered)

Part ID: 4500110









Half nipples are manufactured with a flange on one end and raw tubing on the other. They are often welded onto a custom vacuum system or instrument by a customer with in-house welding capabilities. They can also be used with quick connection fittings to make a vacuum tight connection without welding.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • Quick sealing and disassembly
    •

  •  Butt weld
    •

  • Designed to fit standard inch tubing O.D.’s
    •

  • Highly customizable
    •









Specifications






  •  Materials:
    •





  •  Standard:
    •



    •  Flanges: 304L Stainless Steel
      •

    •  Fitting: 304 Stainless Steel
      •

    •  316 Stainless Steel
      •



  •  Alternative:
    •



    •  6061 Aluminum (Contact us for price and availability)
      •





























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 2.5



                    B 3.94



                    C 3.74



                    Material 304L SS



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
